Key Specifications:
• Sensitivity: 8.0 mV/µm (±5%)
• Measurement Range: 0-1.0mm (1000µm)
• Frequency Response: DC to 10kHz
• Output: -2 to -20V DC linear signal

Robust Design Features:
✓ 8mm industrial-grade probe
✓ M10×1 threaded mounting
✓ -30°C to +120°C operation
✓ 20g vibration resistance
✓ 4MPa pressure rating

Measurement Performance:

Target material: AISI 4140 steel

Linear range: 60% of full scale

Accuracy: ±1% FS

System Integration:
• Compatible with EPRO MMS6000 systems
• 5m high-flexibility shielded cable (standard)
• CON021 quick-disconnect option

Special Features:

/10R designation indicates ruggedized construction

Enhanced cable durability for harsh environments

Reliable performance in high-vibration applications

Typical Applications:

Turbine shaft vibration monitoring

Compressor thrust position measurement

Heavy industrial machinery protection

Compliance:
Meets API 670 machinery protection standards

Key Features:
• Modular Design: Scalable from 4 to 12 channels
• Multi-Parameter Monitoring:
✓ Vibration (velocity/displacement)
✓ Shaft position
✓ Speed/RPM
✓ Temperature (RTD/TC)

Technical Specifications:

Input Compatibility:
• Eddy current probes (PR642x/PR9268)
• Velocity sensors (4-20mA/0-10V)
• Tachometers (5-15V pulse)
• RTDs/thermocouples

Accuracy: ±1% FS

Sampling Rate: 1kHz/channel

Communication & Outputs:
✓ 4-20mA analog outputs (per channel)
✓ Programmable alarm relays
✓ RS-485 Modbus + Ethernet
✓ Optional Profibus-DP

System Integration:

CMS 2000 configuration software

Rack-mounted IP20 enclosure

-20°C to +70°C operation

Typical Applications:

Power plant turbine supervision

Large compressor train monitoring

Critical generator protection

Compliance:
API 670, ISO 10816, CE, UL certified

Advantage:
Flexible expansion capability for growing monitoring needs

(Ideal for centralized plant-wide machinery protection systems)

Key Specifications:
• Channels: 2 fully independent DSP-processed inputs
• Measurement Ranges:

Vibration: 0-500 µm pk-pk

Displacement: 0-2.0 mm

Speed: 0-20,000 RPM
• Accuracy: ±0.5% FS
• Sampling Rate: 2kHz/channel

Advanced Features:
✓ Digital signal processing (DSP) technology
✓ Real-time waveform capture
✓ Predictive maintenance diagnostics
✓ Ethernet/IP & Modbus RTU communication

I/O Configuration:

2x isolated 4-20mA outputs

4x alarm relays (SPDT)

RS-485 + Ethernet standard

Environmental Ratings:

Power: 24V DC or 100-240V AC

Operating Temp: -20°C to +70°C

Enclosure: IP40 panel-mount

Typical Applications:

Steam/gas turbine supervisory systems

Critical compressor protection

Power generation equipment

Compliance:
API 670, ISO 10816, CE, UL

Special Notes:

"D" model features enhanced digital processing

Supports CMS 2000 configuration software

Optional ATEX versions available

Key Features:
✔ ±50g measurement range (100mV/g sensitivity)
✔ Wide frequency response (0.5Hz–5kHz)
✔ IP68-rated for dust/water resistance
✔ M12 connector for secure connectivity
✔ ATEX/IECEx options available

Technical Specifications:

Output: IEPE (±5V)

Power: 18-30VDC (2-10mA constant current)

Operating Temp: -40°C to +120°C

Mounting: M6 threaded stud

Shock Resistance: 500g

Typical Applications:

Pump and motor condition monitoring

Compressor vibration analysis

Fan and blower diagnostics

Structural health assessment

Certifications:

CE, SIL 2 compliant

ATEX/IECEx versions available

ISO 10816/20816 compliant

Why Choose A6220?

Military-grade durability with stainless steel housing

Plug-and-play integration with EPRO systems

5-year warranty for assured performance

Key Features:

8mm stainless steel probe with M10×1 threading

0.5-2.5mm measuring range (8mV/µm sensitivity)

Wide frequency response (0-10kHz)

IP67 environmental protection

MIL-spec threaded connector

Technical Specifications:

Power supply: -18 to -24VDC (±10%)

Output signal: -2 to -18VDC

Operating temperature: -40°C to +100°C

±1% linearity across full range

5m standard cable (extendable to 300m)

Performance Highlights:

±0.5µm repeatability

100 bar pressure rating

500N axial load capacity

NIST-traceable calibration available

Typical Applications:

Industrial pump monitoring

Steam turbine shaft vibration

Compressor rotor position

Paper manufacturing equipment

General rotating machinery

Certifications:

CE and RoHS compliant

Meets API 670 (4th Ed.) and ISO 7919

ATEX option available

Installation Notes:

Requires carbon steel targets (AISI 4140 recommended)

20-30N·m mounting torque

Proper grounding required for optimal performance

Key Features:

8mm stainless steel probe with M10×1 threading

0.5-2.5mm measuring range (8mV/µm sensitivity)

Wide frequency response (0-10kHz)

IP67 environmental protection

150 bar pressure rating

Technical Specifications:

Power supply: -18 to -24VDC (±10%)

Output signal: -2 to -18VDC

Operating temperature: -40°C to +125°C

±1% linearity across full range

5m standard cable (extendable to 500m)

Performance Highlights:

±0.5µm repeatability

50g vibration resistance

MIL-spec connector for secure connections

NIST-traceable calibration available

Typical Applications:

Steam turbine shaft monitoring

Compressor rotor position measurement

Hydroelectric generator bearings

Critical pump train protection

General industrial rotating equipment

Certifications:

Complies with API 670 (4th Ed.)

Meets ISO 7919 standards

CE marked (ATEX optional)

SIL 2 capable

Installation Notes:

Requires carbon steel targets (AISI 4140 recommended)

25N·m mounting torque

Proper grounding required for optimal performance

Key Features
✔ Triaxial MEMS sensor (±50g per axis)
✔ Dual output options: 4-20mA or IEPE
✔ Wide frequency range (0.5Hz–5kHz)
✔ IP68 stainless steel housing
✔ M12 connector for secure connectivity

Technical Highlights
Sensitivity: 100mV/g ±3%

Operating Temp.: -40°C to +85°C

Shock Resistance: 1000g

Cross-Talk: <2% between axes

Mounting: M6 threaded stud

Typical Applications
Gearbox vibration analysis

Pump/motor condition monitoring

Structural health assessment

Wind turbine nacelles

Heavy rotating equipment

Certifications & Options
CE, SIL 2 compliant

ATEX/IECEx versions available

NIST-traceable calibration

Why Choose A6312?
Simultaneous 3-axis measurement saves installation space

Military-grade durability (IP68/1000g shock)

Plug-and-play with EPRO monitoring systems

TÜV-certified for safety applications

Key Features
✔ Wide measuring range: 1–50,000 RPM (±0.01% accuracy)
✔ Triple protection setpoints: Warning/Danger/ESD
✔ <10ms response time – industry-leading for overspeed events
✔ Dual sensor inputs (MPU/proximity) for redundancy
✔ SIL 2 certified (SIL 3 option available)

Technical Specifications
Inputs: Magnetic pickup (MPU) or proximity probe (1–60 pulses/rev)

Outputs:

4× SPDT relays (250VAC/5A)

4–20mA analog output

RS-485 Modbus RTU

Display: 5-digit LED with 0.1 RPM resolution

Power: 24VDC or 85–264VAC

Safety & Protection
Programmable trip delays (0.1–60 seconds)

Self-diagnostics for sensor health monitoring

Event logging (last 10 trips)

TÜV-certified protection logic

Typical Applications
Steam/gas turbine overspeed protection

Critical compressor trains

Power generation equipment

High-speed pump monitoring

Certifications & Options
ATEX/IECEx Zone 1 (optional)

SIL 2/3 compliant versions

CE, UL, API 670 (5th Ed.)

Why Choose TES835S?
Military-grade reliability for mission-critical systems

Flexible integration with PLC/DCS via Modbus

Rugged IP65 aluminum housing

5-year warranty on electronics

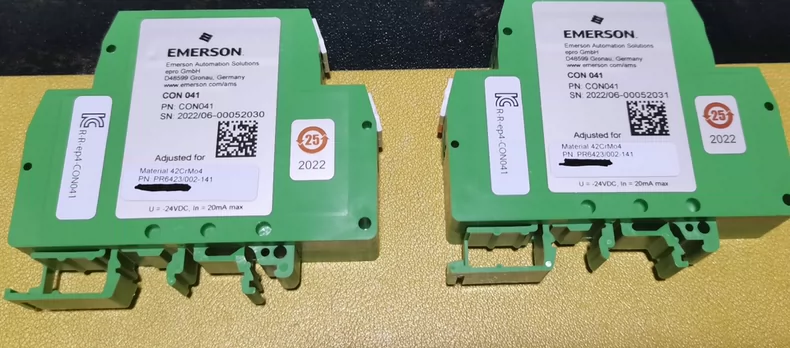

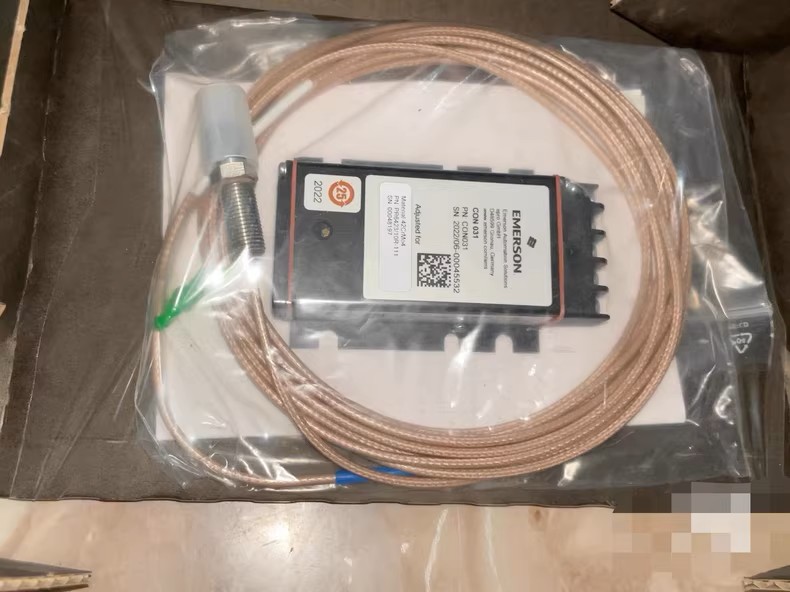

Core Functionality:
The EPRO CON041 is a multi-channel signal conditioner designed to process vibration and position signals from industrial sensors (eddy current probes, accelerometers, 4-20mA). It ensures noise-free, isolated signals for PLC/DCS integration.

Key Features
✔ 4 isolated channels (eddy current, IEPE, 4-20mA, RTD)
✔ Dual outputs: 4-20mA and ±10V (per channel)
✔ High accuracy: ±0.1% FS with 10kHz sampling
✔ Modbus RTU & PROFIBUS-DP communication
✔ IP66 front panel (DIN rail or panel mount)

Technical Highlights
Inputs: DC-15kHz (±3dB), ±10V / 4-20mA

Outputs: 4-20mA (loop-powered) or ±10V analog

Power: 24VDC or 100-240VAC

Isolation: 1500VDC (channel-to-channel)

Operating Temp.: -20°C to +70°C

Applications
Turbine/compressor monitoring

Retrofitting legacy systems

PLC/DCS signal conditioning

Predictive maintenance setups

Certifications & Options
CE, RoHS compliant

ATEX/IECEx version available (CON041-EX)

SIL 2 capable (with TÜV certification)

Why Choose CON041?
Flexible input/output configurations

Industrial-grade noise immunity

Seamless EPRO ecosystem integration

Compact DIN rail design

Key Features
✔ Wide Temp Range: -50°C to +250°C continuous operation
✔ Robust Construction: Inconel 718 housing, IP68 submersible
✔ High Accuracy: ±1% linearity, <3% transverse sensitivity
✔ IEPE Output: 2-10mA constant current, noise-resistant
✔ Military Connector: MIL-C-5015 (gold-plated, vibration-proof)

Technical Specifications
Measurement Range: ±50 g

Sensitivity: 100 mV/g ±3%

Frequency Response: 1 Hz – 5 kHz (±3 dB)

Power Supply: 18-30 VDC (IEPE)

Output Signal: ±5 V (AC-coupled)

Mounting: M8 threaded stud

Applications
Gas/steam turbine casing vibration

Nuclear reactor coolant pumps

Refinery high-temperature compressors

Cement kiln gearbox monitoring

Offshore platform machinery

Certifications & Options
ATEX/IECEx (Zone 1)

Nuclear-qualified (NQA-1)

CE, SIL 2 compliant

Why Choose A6140?
Reliable in extreme heat/corrosion

Military-grade durability

Precision measurements in harsh conditions

Seamless integration with EPRO monitoring systems
