Key Features:
Measurement Range: 0–4 mm (typical)

Output: –2 to –18 V DC (proportional to gap distance)

Sensitivity: –7.87 V/mm

Robust Design: Operates in harsh conditions (up to 120°C)

Compatibility: Integrates with EPRO MMS6000 and other monitoring systems

Applications: Turbines, compressors, pumps, and rotating equipment protection.

Key Features:
Eddy Current Principle: Measures distance between the sensor tip and conductive targets.

Operating Range: Typically 0–10 mm (adjustable based on setup).

Output: Analog signal (e.g., –2 to –18 VDC proportional to gap distance).

Robust Design: Suitable for harsh environments (high temps, oil, steam).

Compatibility: Works with EPRO monitoring systems (e.g., MMS6000).

Purpose:
Ultra-sensitive high-temperature displacement sensor for precision monitoring in extreme environments.

Key Features:

20.0 mV/µm sensitivity (0-0.5mm range)

High-temp operation: -40°C to +200°C (peak 250°C)

Ruggedized design:
✓ 20g vibration resistance
✓ 4MPa pressure rating
✓ M10×1 threaded probe

Applications:
✔ Gas turbine blade clearance
✔ Nuclear pump monitoring
✔ Precision machinery in high heat

Requirements:
• Mineral-insulated cable (>105°C)
• Signal conditioner recommended

Compliance: API 670, ASME B31.1

Core Function:
High-temperature eddy current sensor for extreme environment displacement monitoring.

Key Features:
• Sensitivity: 8.0 mV/µm (±5%)
• Range: 0-1.0mm (1000µm)
• Temp Rating: -40°C to +200°C (peak 250°C)
• Frequency Response: DC to 10kHz

Robust Design:
✓ 8mm high-temp probe
✓ M10×1 threaded mount
✓ 20g vibration resistance
✓ 4MPa pressure rating

Applications:

Gas turbine hot sections

Steam turbine monitoring

High-temp industrial equipment

Compliance: API 670

Purpose:

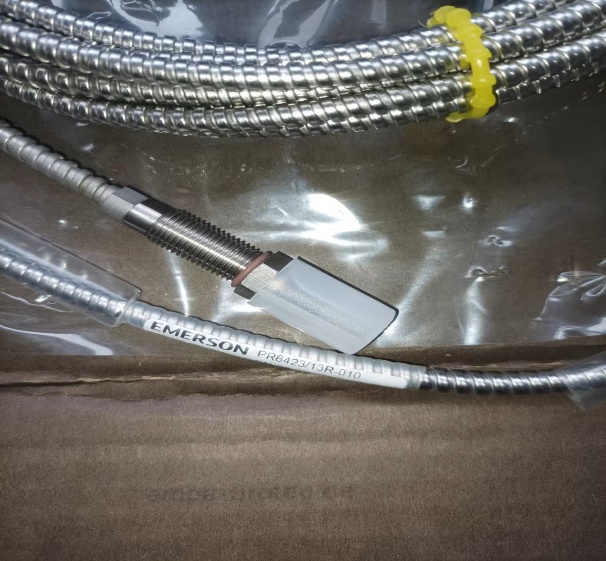

Heavy-duty eddy current sensor for vibration/displacement monitoring in extreme industrial environments.

Key Features:

8.0 mV/µm sensitivity (0-1.0mm range)

Ruggedized /13R design:
✓ IP68 protection
✓ 25g vibration resistance
✓ 6MPa pressure rating

Wide temp range: -40°C to +150°C

Applications:
✔ Offshore compressors
✔ Mining equipment
✔ High-vibration machinery

Compliance: API 670
Options: ATEX/IECEx versions available

Key Specifications:
• Sensitivity: 8.0 mV/µm (±5%)
• Measurement Range: 0-2.0mm (2000µm)
• Frequency Response: DC to 10kHz
• Temp Range: -40°C to +250°C (peak 300°C)

Extreme-Environment Design:
✓ 11mm nuclear-grade probe
✓ M14×1.5 threaded mounting
✓ 10MPa pressure rating
✓ 25g vibration resistance
✓ Radiation-resistant construction

Measurement Performance:

Target: AISI 4140 steel

Linear range: 0.6-1.4mm

Accuracy: ±1% FS

System Integration:
• Compatible with EPRO MMS6000 systems
• Special high-temp mineral-insulated cable
• Nuclear qualification available

Typical Applications:

Nuclear power plant rotating equipment

Ultra-high-pressure steam turbines

Aerospace component testing

Compliance:
API 670, ASME B31.1, Nuclear standards

Key Specifications:
• Sensitivity: 8.0 mV/µm (±5%)
• Measurement Range: 0-1.0mm (1000µm)
• Frequency Response: DC to 10kHz
• Output: -2 to -20V DC linear signal

Robust Design:
✓ 8mm diameter probe
✓ M10×1 threaded mounting
✓ -30°C to +120°C operation
✓ 20g vibration resistance

Measurement Performance:

Target material: AISI 4140 steel

Linear range: 0.3-0.7mm

Accuracy: ±1% FS

System Integration:
• Compatible with EPRO MMS6000 systems
• Standard 5m/9m cable options
• CON021 quick-disconnect available

Typical Applications:

Turbine shaft monitoring

Compressor thrust measurement

Industrial pump/fan protection

Compliance:
Meets API 670 and ISO 10816 standards

Special Features:

Reliable performance in harsh conditions

Standard configuration for most applications

Easy installation and maintenance

Key Specifications:
• Sensitivity: 4.0 mV/µm (±5%)
• Measurement Range: 0-2.0mm (2000µm)
• Frequency Response: DC to 10kHz
• Output: -2 to -20V DC linear signal

Robust Design Features:
✓ 8mm heavy-duty probe
✓ M10×1 threaded mounting
✓ -40°C to +150°C operation
✓ 25g vibration resistance
✓ IP67 environmental protection

Measurement Performance:

Target material: AISI 4140 steel

Linear range: 0.6-1.4mm (60% of full scale)

Accuracy: ±1% FS

System Integration:
• Compatible with EPRO MMS6000 systems
• High-flexibility shielded cable (5m standard)
• CON021 quick-disconnect option

Typical Applications:

Offshore compressor monitoring

Mining equipment vibration analysis

Heavy industrial machinery protection

Special Features:

/10R designation indicates ruggedized construction

Enhanced durability for extreme conditions

Reliable performance in high-vibration environments

Compliance:
Meets API 670 machinery protection standards

Key Specifications:
• Sensitivity: 3.0 mV/µm (±5%)
• Extended Range: 0-3.0mm (3000µm)
• Frequency Response: DC to 10kHz
• Output: -2 to -20V DC linear signal

Mechanical Configuration:
✓ 8mm diameter probe
✓ M10×1 threaded mounting
✓ -30°C to +120°C operation
✓ 20g vibration resistance

Measurement Performance:

Target material: AISI 4140 steel

Linear range: 1.0-2.0mm (60% of full scale)

Accuracy: ±1% FS

System Integration:
• Compatible with EPRO MMS6000 systems
• Standard 5m/9m cable options
• CON021 quick-disconnect available

Typical Applications:

Large turbine shaft monitoring

Compressor axial displacement

Heavy machinery with wide gaps

Special Features:

Optimized for extended range measurements

Maintains stability in industrial environments

Compliance:
Meets API 670 and ISO 10816 standards

Key Specifications:
• Sensitivity: 8.0 mV/µm (±5%)
• Measurement Range: 0-1.0mm (1000µm)
• Frequency Response: DC to 10kHz
• Output: -2 to -20V DC linear signal

Mechanical Design:
✓ 8mm diameter probe
✓ M10×1 threaded mounting
✓ -30°C to +120°C operation
✓ 20g vibration resistance

Measurement Performance:

Target material: AISI 4140 steel

Linear range: 0.3-0.7mm (60% of full scale)

Accuracy: ±1% FS

System Integration:
• Compatible with EPRO MMS6000 systems
• Standard 5m/9m cable options
• CON021 quick-disconnect available

Typical Applications:

Turbine/compressor shaft monitoring

Pump and fan bearing protection

General industrial machinery

Compliance:
Meets API 670 and ISO 10816 standards

Special Features:

Reliable performance in harsh environments

Standard configuration for most applications

Easy installation and maintenance
