Key Specifications

Basic Parameters:

Power: 132kW (177HP)

Current: 246A

Voltage: 380-480V AC (±10%), 3-phase

Frequency: 50/60Hz

Control: DTC (Direct Torque Control)

Efficiency: >98%

Performance:

Overload: 160% for 2 sec

Speed accuracy: ±0.1% (encoderless)

Protection: IP21 (IP55 optional)

Cooling: Forced air

Physical:

Dimensions: 450×900×400mm (W×H×D)

Weight: 65kg

Key Features:
✓ Built-in EMC filter
✓ Dual RS485 + fieldbus options
✓ Energy-saving mode
✓ Integrated brake unit

Certifications:

CE/UL/cUL

IEC 61800 compliant

RoHS

Key Parameters:

Basic Specs:

Power: 110kW (150HP)

Current: 206A

Voltage: 380-480V AC (±10%), 3-phase

Frequency: 50/60Hz

Control: DTC technology

Efficiency: >98%

Performance:

Overload: 160% for 2s

Speed accuracy: ±0.1%

Protection: IP21 (IP55 optional)

Cooling: Forced air

Dimensions:

400×800×360mm (W×H×D)

Weight: 52kg

Features:

Built-in EMC filter

Dual RS485 + fieldbus options

Energy optimization

Advanced braking

Certifications:

CE/UL/cUL

IEC 61800

RoHS

Key Parameters:

Basic Specs:

Power: 90kW (125HP)

Current: 169A

Voltage: 380-480V AC (±10%), 3-phase

Frequency: 50/60Hz

Control: DTC technology

Efficiency: >98%

Performance:

Overload: 160% for 2s

Speed accuracy: ±0.1% (sensorless)

Protection: IP21 (IP55 optional)

Cooling: Forced air

Dimensions:

400×800×360mm (W×H×D)

Weight: 45kg

Features:

Built-in EMC filter

Dual RS485 + fieldbus options

Energy optimization mode

Advanced braking control

Certifications:

CE/UL/cUL

IEC 61800 compliant

RoHS

Technical Specifications:

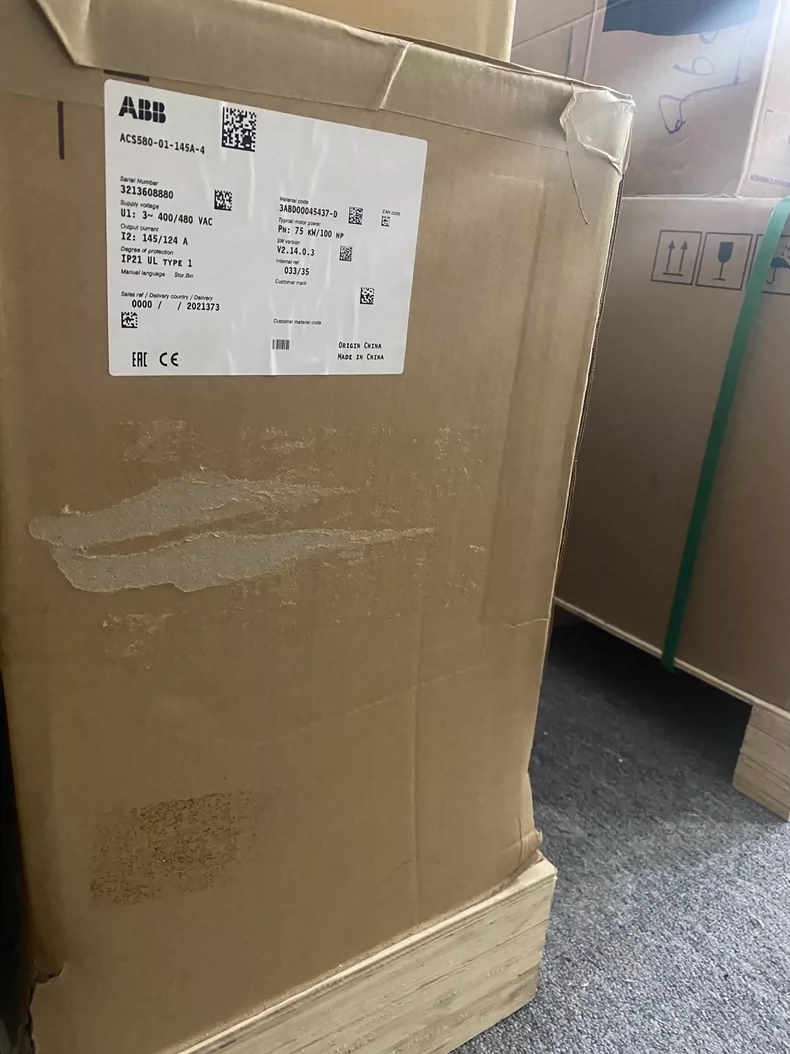

Power Output: 75kW (100HP) continuous duty

Rated Current: 145A (150% overload for 3 seconds)

Input Voltage: 380-480V AC (±10%), 3-phase, 47-63Hz

Control Technology: Advanced Direct Torque Control (DTC)

Speed Accuracy: ±0.1% of set speed (encoderless)

Efficiency: 98.5% typical at full load

Protection Rating: IP21 standard (IP55 optional)

Cooling System: Smart forced-air with thermal management

Advanced Features:

Precision Control System:

ABB's fourth-generation DTC algorithm

Automatic motor tuning (AMA)

6 programmable torque curves

Dynamic braking capability

Energy Management:

Smart Energy Optimization (SEO) function

Active harmonic filtering (THD<3%)

Regenerative energy handling

Industrial Connectivity:

Dual isolated RS485 (Modbus RTU)

Optional fieldbus modules (PROFINET, EtherCAT, DeviceNet)

Embedded web server for remote monitoring

24 digital/analog I/O points

Protection Mechanisms:

Triple-redundant IGBT protection

Real-time motor thermal modeling

Advanced earth fault detection

Input phase monitoring

Physical Characteristics:

Enclosure Dimensions: 355×720×340mm (W×H×D)

Shipping Weight: 42kg (including packaging)

Operating Conditions:

Temperature: -15°C to +50°C (60°C with derating)

Humidity: 5-95% non-condensing

Altitude: 1000m (3000m with derating)

Industry Certifications:

Global Safety: CE, UL, cUL, EAC

Marine: DNV-GL, ABS

Industrial: IEC 61800-5-1, EN 61000-6-4

Energy: IE2 efficiency compliant

Key Specifications:

Power Rating: 55kW (75HP)

Output Current: 106A

Input Voltage: 380-480V AC (±10%), 3-phase, 50/60Hz

Control Technology: Direct Torque Control (DTC)

Overload Capacity: 150% for 3 seconds

Efficiency: >98%

Protection Class: IP21 (IP55 optional)

Cooling Method: Forced air cooling

Core Features:
✓ ABB's advanced DTC motor control
✓ Built-in EMC filter (C3 class)
✓ Dual RS485 ports (Modbus RTU)
✓ Optional fieldbus communications
✓ Integrated brake chopper
✓ Smart energy saving function

Physical Parameters:

Dimensions: 310×615×300mm (W×H×D)

Weight: 24kg

Ambient Temp: -15°C to +50°C

Certifications:
• CE, UL, cUL certified
• IEC 61800 compliant
• RoHS compliant

Key Parameters:

Basic Specs:

Power: 45kW (60HP)

Current: 88A

Voltage: 380-480V AC (±10%), 3-phase

Frequency: 50/60Hz

Control: DTC technology

Efficiency: >98%

Performance:

Overload: 150% for 3s

Speed accuracy: ±0.2% (sensorless)

Protection: IP21 (IP55 optional)

Cooling: Forced air

Dimensions:

255×515×270mm (W×H×D)

Weight: 18.5kg

Features:

Built-in EMC filter

RS485 + fieldbus options

Energy saving mode

PID controller

Certifications:

CE/UL/cUL

RoHS compliant

Key Specifications:

Power Rating: 37kW (50HP) continuous duty

Output Current: 73A (150% overload for 3 seconds)

Input Voltage: 380-480V AC (±10%), 3-phase, 50/60Hz

Control Technology: ABB Direct Torque Control (DTC)

Efficiency: >97.5% (typical at full load)

Protection Class: IP21 standard (IP55 optional)

Cooling Method: Intelligent forced-air cooling

Advanced Features:

Precision Motor Control:

±0.5% speed control accuracy without encoder

Automatic motor adaptation (AMA)

Torque boost function for heavy starts

Energy Optimization:

Smart Energy Saving mode (up to 30% energy reduction)

Adaptive DC link control

Built-in harmonic mitigation (THD<5%)

Enhanced Connectivity:

Dual-channel RS485 (Modbus RTU)

Optional fieldbus modules (PROFINET, EtherNet/IP)

Integrated PID controller with 4 preset speeds

Robust Protection:

Multi-level IGBT protection

Motor thermal overload protection

Phase loss and short circuit detection

Key Parameters:

Basic Specs:

Power: 30kW (40HP)

Output: 62A

Input: 380-480V AC (±10%), 3-phase, 50/60Hz

Control: DTC technology

Efficiency: >98%

Features:

Overload: 150% for 3s

Protection: IP21 (IP55 optional)

Cooling: Forced air

Comm: RS485 + fieldbus options

Dimensions:

220×450×245mm (W×H×D)

Weight: 14.2kg

Certifications:

CE/UL/cUL

IEC 61800 compliant

Key Specifications:

Power Rating: 22kW (30HP)

Output Current: 46A

Input Voltage: 380-480V AC (±10%), 3-phase, 50/60Hz

Control Method: Sensorless vector control (DTC)

Efficiency: >97%

Protection Class: IP21 (standard)

Ambient Temperature: -15°C to +50°C (without derating)

Technical Features:

Advanced Motor Control:

Sensorless Direct Torque Control (DTC) technology

Automatic motor adaptation (AMA)

Flying start function

Energy Saving Functions:

Automatic energy optimization

Power factor correction

Sleep mode functionality

Protection Features:

Motor thermal protection

Short circuit protection

Overcurrent and overvoltage protection

Ground fault protection

User Interface:

Built-in multilingual control panel

Quick start macros for common applications

Real-time monitoring of key parameters

Communication Options:

Built-in Modbus RTU (RS485)

Optional fieldbus adapters available (Profibus, Ethernet, etc.)

Key Features
Plug-and-Play Simplicity: Pre-programmed macros for quick setup.

Energy Efficiency: ABB’s Optimum Motor Control (OMC) ensures smooth performance and energy savings.

Robust Protection: Built-in safeguards against overloads, short circuits, and overheating.

EMC Compliance: Integrated EMC filter (meets IEC 61800-3 standards).

Smart Connectivity: Supports Modbus RTU, BACnet MS/TP, and optional Fieldbus protocols.

LCD Keypad: Intuitive interface for easy monitoring and parameter adjustments.
