Key Specifications
Power Characteristics:

Power Rating: 630kW (845HP)

Output Current: 850A (continuous)

Voltage Range: 380-480V AC (±10%)

Frequency: 50/60Hz (±5%)

Efficiency: >98% (typical)

Control Features:

Control Method: Direct Torque Control (DTC)

Speed Range: 0-100% (without encoder)

Speed Accuracy: ±0.1% of nominal speed

Response Time: <5ms

Protection Systems:

Short circuit protection (I²t)

Ground fault detection

Motor thermal overload

Input phase loss protection

Overvoltage/undervoltage control

Physical Specifications
Enclosure: IP21 (standard), IP54 (optional)

Cooling Method: Forced air (integrated fans)

Dimensions: 1800 × 800 × 400mm (W×H×D)

Weight: Approx. 450kg

Mounting: Floor-standing

Communication & Integration
Standard Interfaces:

PROFIBUS DP

Modbus RTU

Analog I/O (4xAI, 2xAO, 6xDI, 3xDO)

Optional Cards:

Ethernet/IP

DeviceNet

PROFINET

Environmental Ratings
Operating Temperature: 0°C to +40°C

Storage Temperature: -40°C to +70°C

Relative Humidity: <95% non-condensing

Altitude: <1000m without derating

Certifications & Compliance
Safety: UL, CE, cUL

EMC: EN 61800-3

Marine: DNV/GL, ABS

RoHS Compliant

Technical Specifications
Electrical Characteristics:

Input Voltage: 85-264V AC (47-63Hz) or 120-370V DC

Output: 24V DC ±1% regulated

Current Rating: 36A (continuous)

Power Rating: 864W

Efficiency: 94% (typical at full load)

Inrush Current: <40A (at 230V AC)

Protection Features:

Overvoltage protection (auto-reset)

Short-circuit protection (hiccup mode)

Overload derating curve

Thermal shutdown with auto-recovery

Physical Specifications:

Dimensions: 215 × 125 × 60mm (W×H×D)

Weight: 1.8kg

Cooling: Forced air (integrated variable-speed fan)

Mounting: DIN rail (EN 60715) or panel mount

Environmental Ratings:

Operating Temperature: -25°C to +70°C (with derating above +60°C)

Relative Humidity: 5-95% non-condensing

Altitude: 5000m (with derating above 2000m)

Vibration Resistance: 3g (10-150Hz)

Key Features
Advanced Power Management

Active PFC (PF>0.98)

Parallel operation capability (up to 3 units)

Remote sense compensation

Monitoring & Control

LED status indicators (power, fault, load share)

Signal contact for power good/failure

Remote on/off control

Industrial Durability

Conformal coated PCB

Corrosion-resistant terminals

Reinforced housing (IK08 impact resistance)

Certifications & Compliance
Safety: UL 60950-1, EN 62368-1

EMC: EN 61000-6-2, EN 61000-6-4

Marine: DNV-GL, ABS

Railway: EN 50155 (optional)

RoHS & REACH Compliant

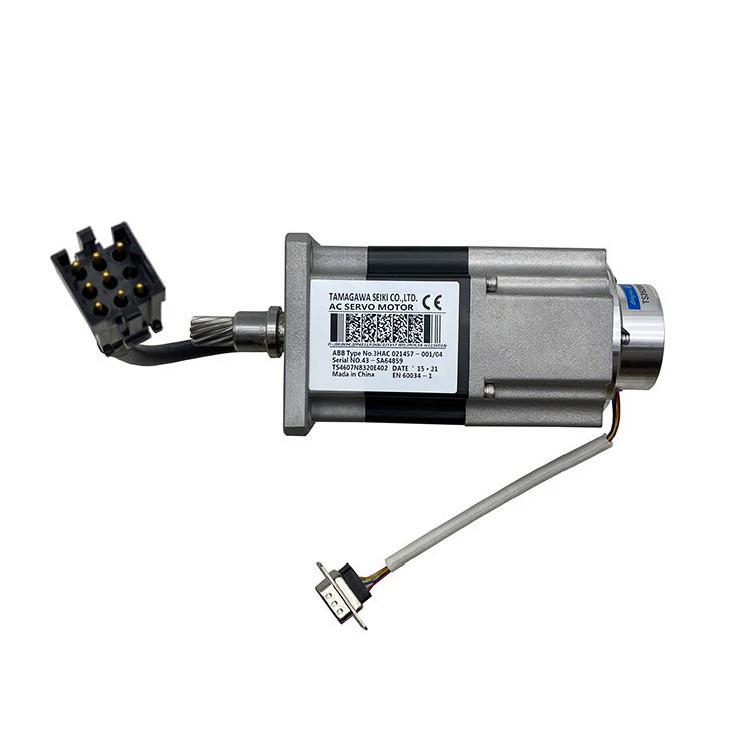

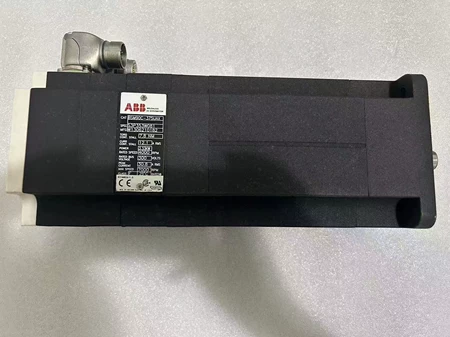

Technical Specifications
Mechanical Specifications:

Frame Size: 100mm

Shaft Diameter: 28mm (keyed shaft)

Weight: 12.5kg

Protection Class: IP67 (standard)

Cooling: Natural convection (IC410)

Electrical Parameters:

Rated Power: 2.4kW

Rated Torque: 12Nm

Peak Torque: 36Nm (300% overload)

Speed Range: 0-3000 RPM

Voltage Class: 400V AC

Insulation Class: F (155°C)

Feedback System:

Integrated Encoder: 20-bit multi-turn absolute

Resolver: Backup feedback device

Signal Interface: DRIVE-CLiQ compatible

Thermal Characteristics:

Ambient Temperature: 0°C to +40°C

Max Winding Temp: 155°C (with thermal sensor)

Thermal Time Constant: 45 minutes

Key Features
High Dynamic Performance

Low rotor inertia (0.015kgm²)

300% overload capability

Optimized torque ripple (<2%)

Robust Construction

Reinforced bearings (L10 life: 30,000h)

Corrosion-resistant housing

Sealed connectors

Safety & Monitoring

Integrated thermistor (PTC/KTY)

Vibration monitoring interface

STO (Safe Torque Off) ready

Compatibility
Robot Models: IRB 4600/IRB 6600 series

Controllers: IRC5 with DSQC series drives

Software: RobotWare 5.0 and later

Certifications
CE Marked

UL Listed

ISO 9409-1 mechanical interface

EMC: EN 61800-3

Technical Specifications
Core Performance
Processor: 32-bit RISC @ 500MHz

Memory: 4MB Flash, 2MB SRAM

Servo Update Rate: 25μs

Encoder Interface: 19-bit resolution

Electrical Characteristics
Operating Voltage: 24V DC ±10%

Power Consumption: 18W typical

Isolation: 2000V AC (safety circuits)

Communication Interfaces
High-speed RobotBus optical link

Dual-channel safety interface (SIL3)

Drive communication port

Environmental Ratings
Operating Temp: 0°C to +55°C

Vibration Resistance: 5g (10-500Hz)

Protection Class: IP20 (controller-mounted)

Key Features
1. Advanced Motion Control

0.005mm path accuracy

Adaptive vibration suppression

Dynamic friction compensation

2. Safety Integration

Safe Torque Off (STO) implementation

Dual-channel monitoring (EN ISO 13849-1 PL e)

Fault memory with timestamp

3. Diagnostic Capabilities

On-board self-test routines

Predictive maintenance data collection

Multi-color status LEDs

Compatibility
IRB 6600/IRB 6700 robot series

IRC5 controller (all variants)

RobotWare 5.15 and later

Certifications
CE, UL, cUL Listed

ISO 10218-1 compliant

EMC: EN 61000-6-4

Technical Specifications
Power Characteristics
Input Voltage: 600V DC (nominal)

Output Current: 45A continuous (75A peak)

Power Rating: 30kW

Switching Frequency: 8kHz (PWM)

Control Features
32-bit DSP-based control

Multi-encoder interface (resolver + digital)

Adaptive current control algorithms

50μs servo update rate

Communication Interfaces
RobotBus optical connection

Drive-to-drive synchronization link

Safety signal interface (STO, SS1)

Physical Specifications
Dimensions: 220 × 150 × 80mm

Weight: 2.8kg

Cooling: Liquid-cooled (standard)

Protection: IP54 (module only)

Key Features
Precision Motion Control

0.001° position resolution

Torque ripple <1.5%

Automatic vibration suppression

Safety Integration

SIL3/PLe compliant safety circuits

Dual-channel monitoring

Safe Torque Off (STO) implementation

Diagnostic Capabilities

On-board condition monitoring

Predictive maintenance data

LED status indicators (power, fault, comms)

Compatibility
IRB 6700 robot series

IRC5 controller platform

RobotWare 6.0 and later

Environmental Ratings
Operating temperature: 0-55°C

Humidity: 5-95% non-condensing

Vibration resistance: 5g (10-500Hz)

Certifications
CE Marked

Key Features & Specifications
Protection Functions
Thermal Overload Protection (I²t characteristic)

Short Circuit Protection (Instantaneous & time-delayed)

Phase Unbalance (>15% adjustable)

Ground Fault Detection (50mA-30A range)

Undercurrent/Underpower Monitoring

Start Supervision (2 consecutive starts max)

Measurement Capabilities
True RMS current measurement (0.2% accuracy)

Voltage monitoring (optional)

Power factor calculation

Energy consumption tracking

Communication & Control
PROFIBUS DP (standard)

Modbus RTU (RS485 interface)

4 programmable relay outputs

6 digital inputs

Technical Parameters
Current Rating: 1-100A (CT configurable)

Supply Voltage: 24-240V AC/DC

Operating Temp.: -25°C to +70°C

Enclosure: IP54 (front), IP20 (rear)

Display: Backlit LCD with status LEDs

Certifications
UL 508 Listed

CE Marked

IEC 60947-4-1 Compliant

DNV-GL Marine Certified

Technical Specifications
Core Functions:

Real-time servo control for 1 robot axis

32-bit RISC processor @ 400MHz

2MB SRAM for motion trajectory calculation

Dual-channel encoder interface (17-bit resolution)

Communication Interfaces:

RobotBus optical connection (10Mbps)

Safety signal interface (dual-channel)

Drive communication link

Electrical Characteristics:

Operating voltage: 24V DC ±10%

Power consumption: 15W typical

Isolation: 1500V AC (safety circuits)

Environmental Ratings:

Operating temperature: 0-55°C

Vibration resistance: 5g (10-500Hz)

Protection class: IP20 (controller-mounted)

Key Features
Precision Motion Control

0.01mm path accuracy

25μs servo update rate

Adaptive vibration suppression

Safety Integration

STO (Safe Torque Off) implementation

Dual-channel safety monitoring

SIL3/PLe compliant

Diagnostic Capabilities

On-board self-test routines

Predictive maintenance data

LED status indicators

Compatibility
IRB 6600/6700 robot series

IRC5 controller platform (all variants)

RobotWare 5.0 and later

Certifications
CE Marked

UL Listed

ISO 10218-1 compliant

EMC: EN 61000-6-4

Ordering Information
Part Number: 3HAC072394-001

Included:

Axis computer module

Installation guide

Configuration cable

Key Specifications
Electrical Parameters
Rated Power: 90kW

DC Voltage: 375V nominal (700V max)

Peak Current: 240A (5 sec)

Continuous Current: 120A

Switching Frequency: 2kHz

Protection Features
Overvoltage protection

Overcurrent shutdown

Thermal monitoring (IGBT junction temp)

Short-circuit protection

Physical Characteristics
Dimensions: 245 × 170 × 85mm

Weight: 3.2kg

Cooling: Forced air (fan included)

Mounting: DIN rail or direct panel

Environmental Ratings
Operating Temp: -25°C to +50°C

Humidity: 5-95% non-condensing

Altitude: 1000m (standard)

Compatibility
Designed for ABB ACS880 drives

Plug-and-play installation

Parallel operation supported

Certifications
CE, UL, cUL

EN 61800-5-1 safety

RoHS compliant

Technical Specifications
Electrical Parameters:

Rated Power: 120kW continuous

Voltage Range: 825VDC nominal

Peak Current Capacity: 250A (for 10 seconds)

Duty Cycle: 10% standard (higher available)

Response Time: <1ms

Thermal Management:

Cooling Method: Forced air (integrated fan)

Thermal Protection: Class F insulation

Ambient Temperature: -25°C to +50°C (with derating above 40°C)

Physical Characteristics:

Dimensions: 450 × 300 × 200mm (W×H×D)

Weight: 28kg

Protection Class: IP21 (standard), IP54 (optional)

Mounting: Vertical or horizontal (DIN rail optional)

Key Features
Advanced Braking Control

Automatic voltage regulation

Adaptive braking torque adjustment

Smooth deceleration profile

System Integration

Plug-and-play with ACS880 drives

Status monitoring via drive interface

LED diagnostic indicators

Protection Functions

Overvoltage shutdown

Current limit protection

Thermal overload protection

Short-circuit protection

Communication Capabilities

DriveBus interface

Optional fieldbus connections (PROFIBUS, Modbus)

Certifications & Compliance
Safety: EN 61800-5-1

EMC: EN 61800-3

Marine: DNV/GL, ABS

UL/cUL Listed

RoHS/REACH Compliant

Key Features & Specifications
Performance Characteristics
Rated Power: 120kW

Voltage Class: 825V DC

Peak Current Capacity: 200A (short duration)

Duty Cycle: 10% ED (standard)

Response Time: <2ms

Protection Features
Overvoltage protection

Overcurrent protection

Thermal overload protection with auto-reset

Short-circuit protection

Physical Specifications
Enclosure Rating: IP20 (standard), IP54 (optional)

Cooling Method: Forced air cooling

Mounting: Wall or cabinet mounting

Weight: 25kg (standard configuration)

Environmental Ratings
Operating Temperature: -25°C to +50°C

Storage Temperature: -40°C to +70°C

Relative Humidity: 5-95% non-condensing

Altitude: Up to 1000m without derating

Compatibility & Integration
Designed for use with ABB ACS880 series drives

Plug-and-play connection with standard drive interfaces

Status monitoring via drive control panel

Certifications & Standards
CE Marked

UL Listed

RoHS Compliant

Meets EN 61800-5-1 safety requirements
