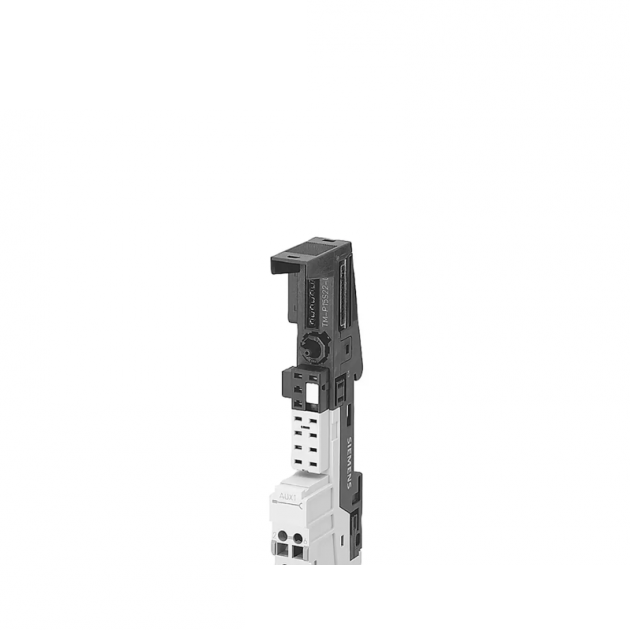

The Siemens 6ES7193-4CD20-0AA0 Terminal Module is a high-performance component designed for industrial automation systems. It offers reliable connection and data transfer capabilities between different devices in an industrial setting.

Key Features
✔ Versatile Input Configuration

Supports 4-20mA, 0-20mA, ±10V, and thermocouple/mV inputs (software configurable)

16-bit resolution (0.01% accuracy) for precise measurement

✔ Advanced Signal Processing

Built-in digital filtering for noise reduction

Open-wire detection (for current inputs)

Over-range protection (up to ±30V)

✔ Industrial Reliability

500V galvanic isolation (channel-to-channel and system)

Operating temperature: -25°C to +60°C

Hot-swappable in compatible systems

✔ Comprehensive Diagnostics

Per-channel LED status indicators

Detailed fault reporting via control system

Technical Specifications
Parameter Specification
Manufacturer P/N 3BSE052604R1
Input Type Current/Voltage/Thermocouple
Current Input 4-20mA/0-20mA (±0.05% accuracy)
Voltage Input ±10V/±100mV (±0.05% accuracy)
Resolution 16-bit
Sampling Rate ≤1ms per channel
Input Impedance 250Ω (current), >1MΩ (voltage)
Common Mode Rejection >120dB
Power Supply 24V DC via backplane
Certifications CE, UL, ATEX (optional)
Typical Applications
Process Variable Monitoring (pressure, temperature, flow)

Equipment Condition Monitoring

Quality Control Systems

Energy Management Systems

Laboratory InstrumentationSystem Integration
Compatible With:

ABB AC 800M controllers

System 800xA DCS

S800 I/O base units
