Specifications: Model: FIELDVUE DLC3100 Digital Level Controller Communication Protocol: HART 5/7 (Analog 4-20 mA with digital overlay) Power Supply: 16.5 to 42 V DC (Loop Powered) Ambient Temperature Range: -40° to 75°C (-40° to 167°F) Enclosure Rating: NEMA 4X / Type 6P / IP67 Mounting: Directly on the valve yoke or via a mounting bracket. Measurement & Performance: Measurement Technology: Guided Wave Radar (Tuned Waveguide) Measurement Range: Up to 6 meters (20 feet) Accuracy: Typically ±3 mm (±0.12 in) or 0.1% of selected range, whichever is greater. Update Time: < 1 second Control & Output: Control Output: Pneumatic, proportional to the measured level. Output Pressure Ranges: Selectable (e.g., 0.2-1.0 bar, 0.4-2.0 bar, 0.8-3.4 bar) [3-15, 6-30, 12-50 psi] Air Supply Pressure: 1.4 to 7.0 bar (20 to 100 psi), must be at least 0.35 bar (5 psi) above the required output pressure. Air Consumption: 0.14 Nm³/h (0.1 SCFM) @ 1.4 bar (20 psi) supply (no load) Control Action: Direct or Reverse acting (configurable). Control Algorithms: Proportional (P), Proportional-Integral (PI) Materials & Process Connection: Process Connection: 2-inch NPT or other flanged connections (dependent on the probe assembly). Probe Material: 316L Stainless Steel (standard), other alloys available. Cable / Conduit Entry: Two 1/2-inch NPT entries. Compatibility: Valves: Designed to work with Fisher and other brands of diaphragm control valves. Asset Management Systems: Fully compatible with Emerson's AMS Device Manager and other HART-based host systems for remote configuration and monitoring.

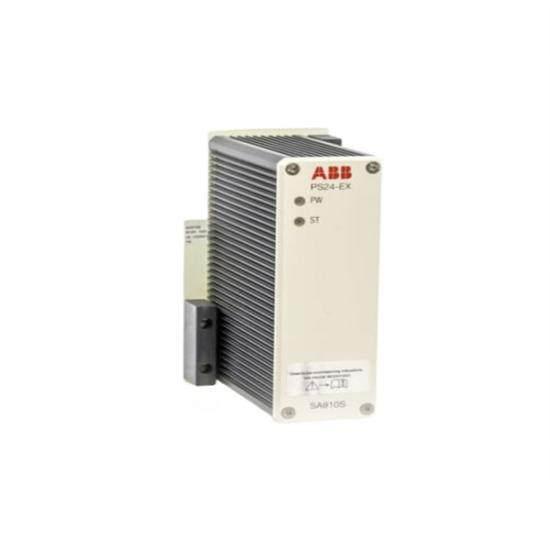

The ABB SA910S Power Supply Module is a robust solution for industrial automation applications, offering reliable power distribution and management for various control systems.

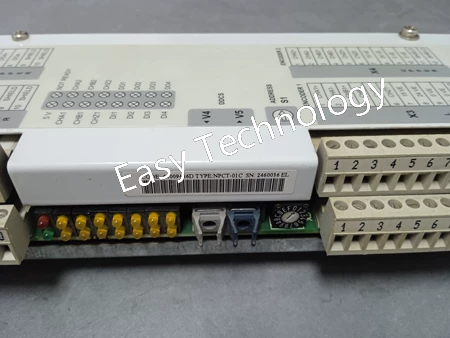

ABBNPCT-01C is a pulse counting/timer module designed for industrial automation control. It can count pulse signals accurately and provide timing function. It is widely used in various industrial control systems, such as production line monitoring, equipment status monitoring and other fields.
