Core Components

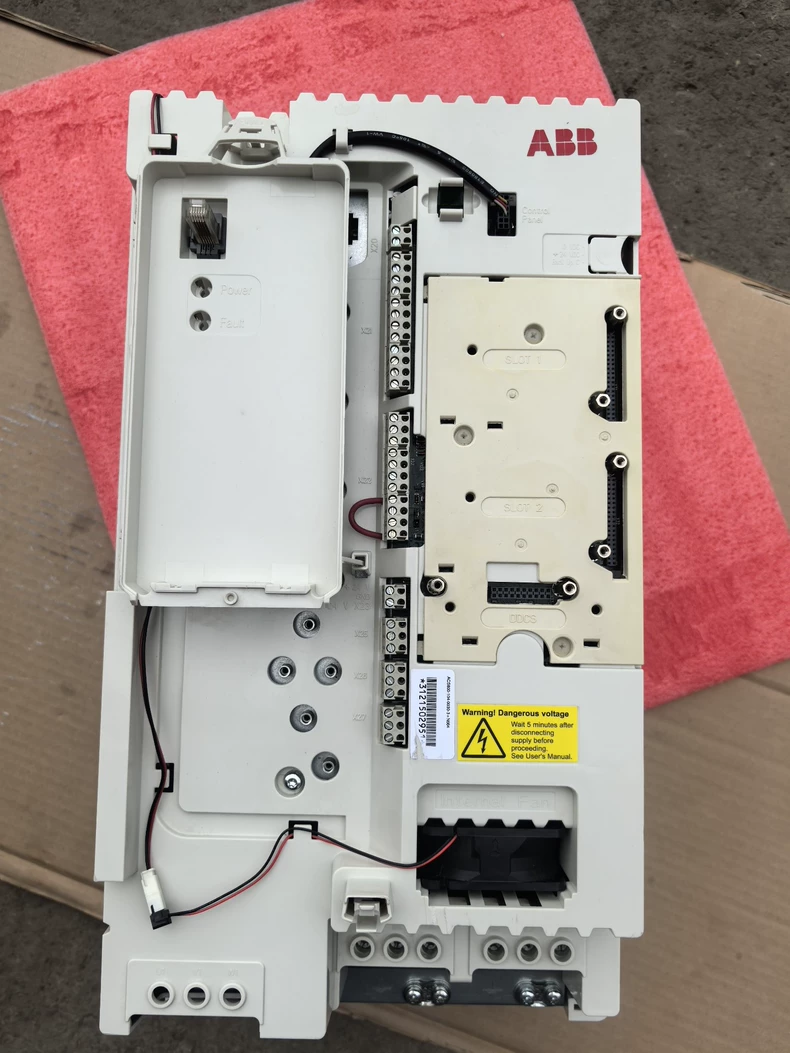

1. ACS800-104-0030-3 Drive Unit

Output Power: 30kW (400V)

Output Current: 60A continuous

Input Voltage: 3-phase 380-480V AC (±10%)

Overload Capacity: 150% for 60 seconds

Control Method: Direct Torque Control (DTC)

Efficiency: >97% at full load

2. N664 Control Panel

LCD display with backlight

Multilingual interface (8 languages)

USB port for parameter transfer

Status LEDs for quick diagnostics

IP54 protection rating (front panel)

Key Features
Performance:
✔ Precise Speed Control: ±0.1% speed regulation
✔ Adaptive Programming: 5 application macros
✔ Energy Optimization: Automatic motor adaptation
✔ Fast Response: <5ms torque response time

Connectivity:

Built-in Modbus RTU (RS485)

Optional fieldbus modules:

PROFIBUS DP

DeviceNet

CANopen

Protection:

Motor thermal protection

Short-circuit protection

Phase loss detection

Ground fault monitoring

Mechanical Specifications
Enclosure: IP21 (main unit), IP54 (panel)

Dimensions: 300 × 500 × 250mm (W×H×D)

Weight: 18kg (complete system)

Cooling: Temperature-controlled fan

Ambient Temperature: 0°C to +40°C
