Key Parameters & Specifications Parameter / Feature Category Description Product Name Fisher™ Baumann™ 24000F Pneumatic Actuator Type Spring-and-Diaphragm, Low-Friction, Rotary Actuator Primary Function To provide precise rotary torque for modulating control of quarter-turn valves (e.g., V-notch ball valves). Actuator Type Spring-Return (Fail-Safe). Input Signal Standard: 3-15 psig (0.2-1.0 bar) or 6-30 psig (0.4-2.0 bar). Supply Pressure Typically up to 100 psig (7 bar). Housing Material Glass-Reinforced Polyamide (Composite) for corrosion resistance and light weight. Torque Output Provides precise, high-resolution torque. Exact values depend on the actuator size and supply pressure. (Consult the specific data sheet for torque curves). Standard Rotation 90° quarter-turn. Action Field-reversible between direct and reverse action. Fail-Safe Action Spring-Return. The valve fails to the position determined by the actuator orientation (e.g., spring-to-close or spring-to-open). Temperature Range -20°F to 180°F (-29°C to 82°C) with standard components. Mounting Designed to mount to valves with ISO 5211 mounting pads. Uses a standardized mounting kit system. Accessory Ports Prepared for the installation of accessories such as: • Limit Switches • Solenoid Valves • Positioners (e.g., Fisher 3582 or a FIELDVUE DVC)

The Eaton DG4V-5-22ALJ-M-U-H6-20 is a high-end, dual-feedback, wet-armature servo-proportional directional control valve from Eaton's flagship DG4V series. It represents the pinnacle of precision motion control technology, incorporating multiple advanced features for maximum performance, reliability, and diagnostic capability in demanding industrial and test applications.

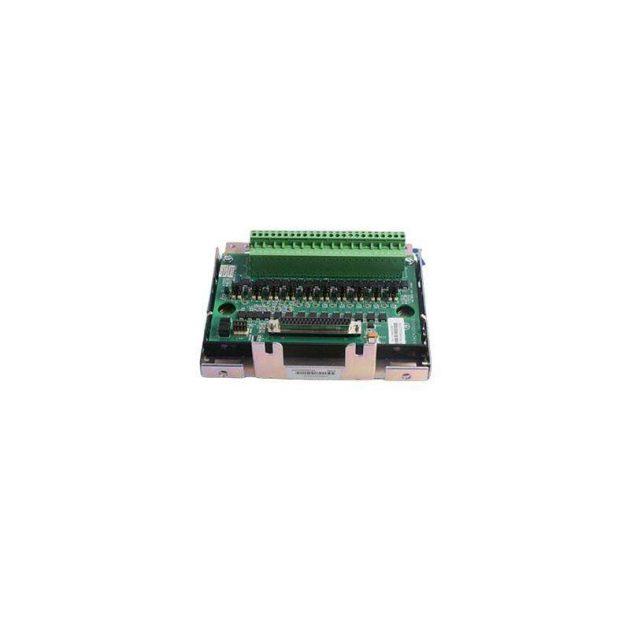

The GE IS200TDBTH2ACC is a specialized control board designed for high-precision turbine systems, ensuring reliable performance and enhanced efficiency in industrial operations.
