Key Parameters Category Description / Value Product Line Eaton PL (Miniature Circuit Breakers) Rated Current (Iₙ) 32 A Number of Poles 3-Pole Tripping Characteristic C-Curve (Instantaneous trip between 5-10 x Iₙ) Rated Operational Voltage (Uₑ) 400/415 V AC (Three-Phase) Rated Insulation Voltage (Uᵢ) 500 V Breaking Capacity According to IEC/EN 60898 standard (typically 10 kA) Standards Compliance IEC/EN 60898-1 Mounting Snap-on mounting on 35 mm top-hat rail (DIN rail) Connection Screw terminals

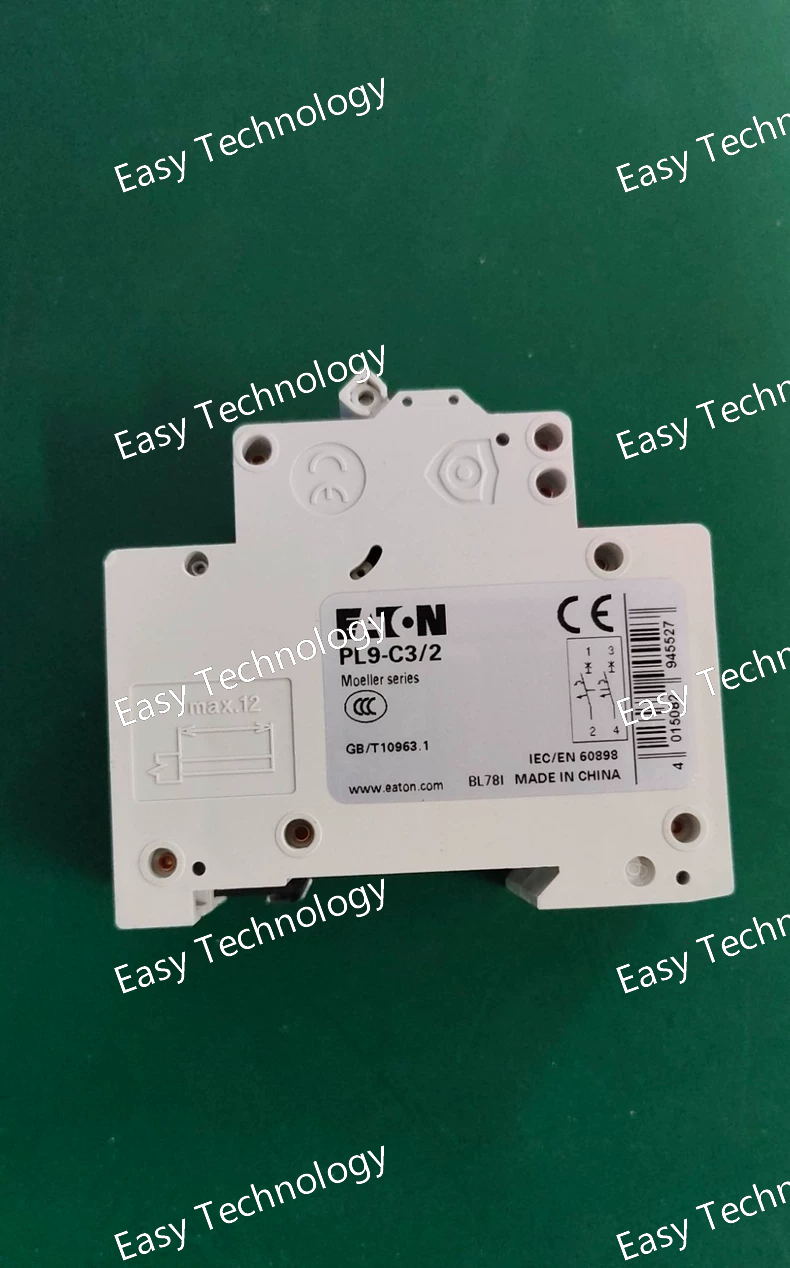

Key Parameters Category Description / Value Product Line Eaton PL (Miniature Circuit Breakers) Rated Current (Iₙ) 3 A Number of Poles 2-Pole Tripping Characteristic C-Curve (Instantaneous trip between 5-10 x Iₙ) Rated Operational Voltage (Uₑ) 230 V AC (Single-Phase) Rated Insulation Voltage (Uᵢ) 500 V Breaking Capacity According to IEC/EN 60898 standard (typically 6 kA) Standards Compliance IEC/EN 60898-1 Mounting Snap-on mounting on 35 mm top-hat rail (DIN rail) Connection Screw terminals

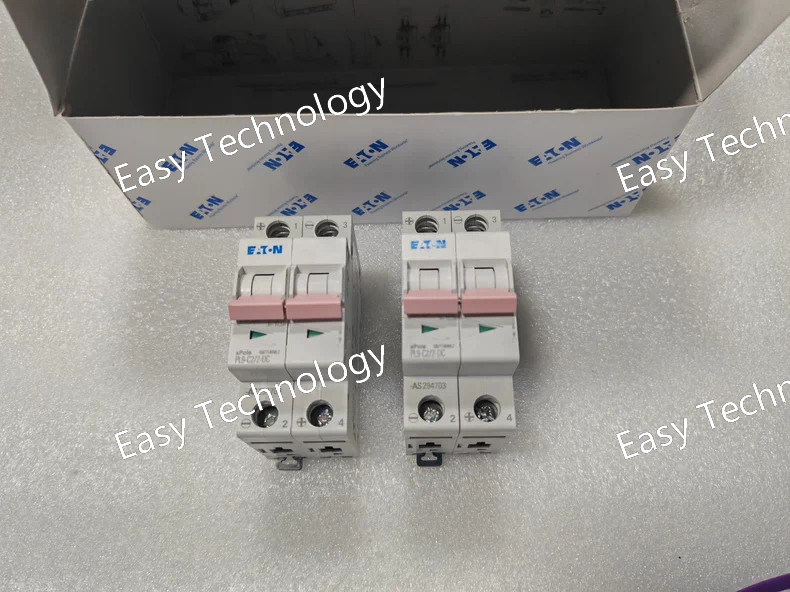

Key Parameters Category Description / Value Product Line Eaton PL (Miniature Circuit Breakers) Rated Current (Iₙ) 2 A Number of Poles 2-Pole Tripping Characteristic C-Curve Rated Operational Voltage (Uₑ) DC Voltage - Specific maximum DC voltage must be confirmed from device datasheet Application DC circuits only Breaking Capacity Rated for DC circuits according to relevant standards Standards Compliance Relevant DC standards Mounting Snap-on mounting on 35 mm top-hat rail (DIN rail) Connection Screw terminals

Key Parameters Category Description / Value Product Line Eaton PL (Miniature Circuit Breakers) Rated Current (Iₙ) 4 A Number of Poles 2-Pole Tripping Characteristic C-Curve Rated Operational Voltage (Uₑ) DC Voltage - Specific maximum DC voltage must be confirmed from device datasheet (e.g., 60V DC, 125V DC) Application DC circuits only Breaking Capacity Rated for DC circuits according to relevant standards Standards Compliance Relevant DC standards Mounting Snap-on mounting on 35 mm top-hat rail (DIN rail) Connection Screw terminals

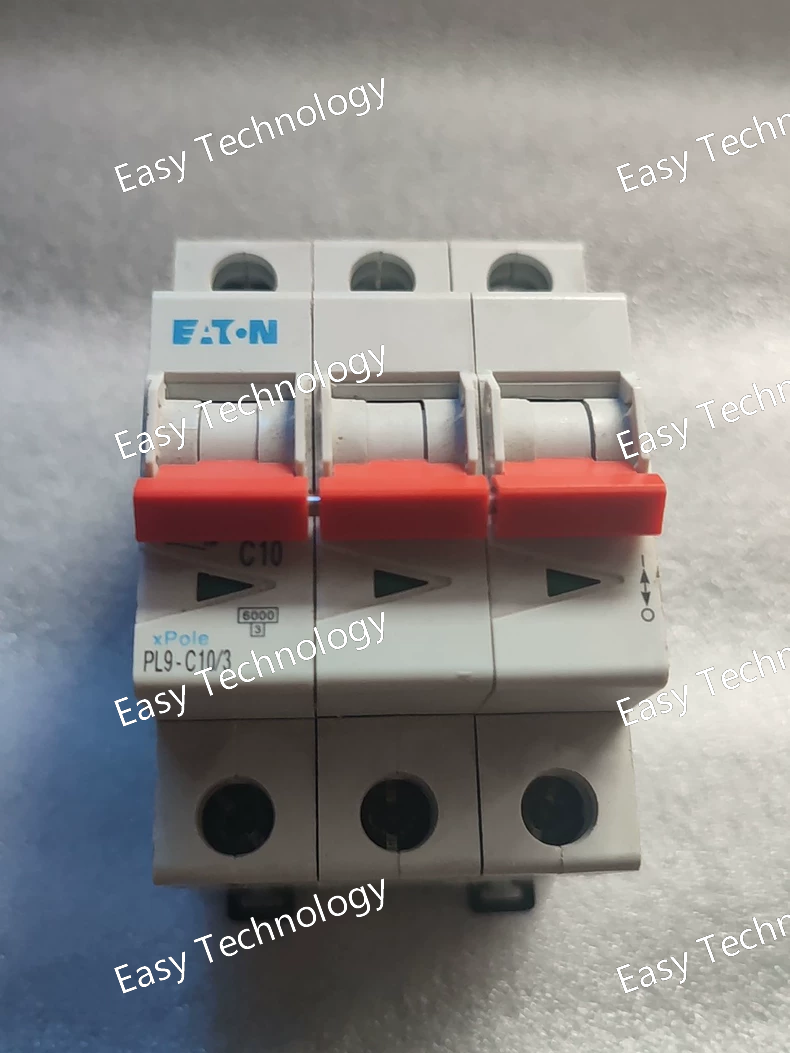

Key Parameters Category Description / Value Product Line Eaton PL (Miniature Circuit Breakers) Rated Current (Iₙ) 10 A Number of Poles 3-Pole Tripping Characteristic C-Curve (Instantaneous trip between 5-10 x Iₙ) Rated Operational Voltage (Uₑ) 400/415 V AC (Three-Phase) Rated Insulation Voltage (Uᵢ) 500 V Breaking Capacity According to IEC/EN 60898 standard (typically 6-10 kA) Standards Compliance IEC/EN 60898-1 Mounting Snap-on mounting on 35 mm top-hat rail (DIN rail) Connection Screw terminals

Key Parameters Parameter Specification Product Line Eaton PLD RCBO Series Rated Current 6A Poles 1P + N (2-pole) Tripping Characteristic C-Curve (5-10×Iₙ) Residual Current 30mA Rated Voltage 230V AC Breaking Capacity Typically 6kA (IEC 60898) Standards IEC 61009-1 Mounting DIN Rail (35mm)

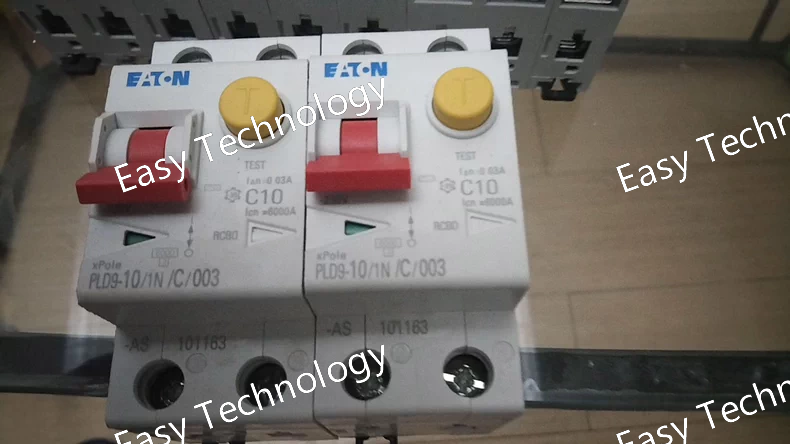

Key Parameters Category Description / Value Product Line Eaton PLD9 (Miniature Circuit Breakers) Rated Current (Iₙ) 10 A Number of Poles Typically 1-Pole (other configurations available) Tripping Characteristic Standard Characteristic (typically C-Curve) Rated Operational Voltage (Uₑ) 230/400 V AC Rated Insulation Voltage (Uᵢ) 500 V Breaking Capacity According to IEC/EN 60898 standard Standards Compliance IEC/EN 60898-1 Mounting Snap-on mounting on 35 mm top-hat rail (DIN rail) Connection Screw terminals

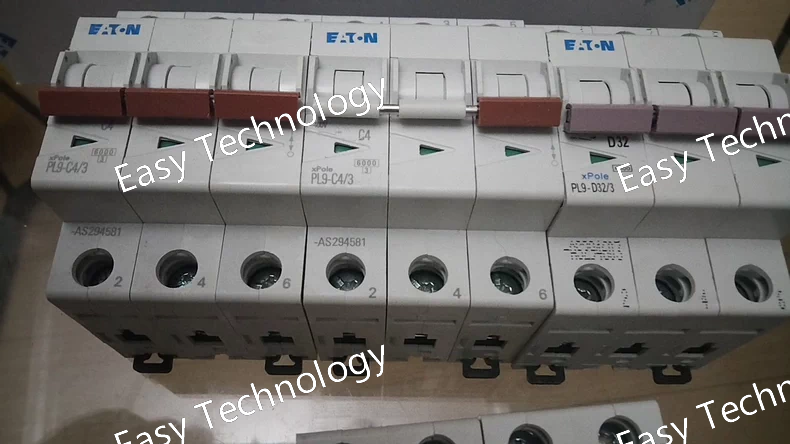

Key Parameters Category Description / Value Product Line Eaton PL (Miniature Circuit Breakers) Rated Current (Iₙ) 4 A Number of Poles 3-Pole Tripping Characteristic C-Curve (Instantaneous trip between 5-10 x Iₙ) Rated Operational Voltage (Uₑ) 400/415 V AC (Three-Phase) Rated Insulation Voltage (Uᵢ) 500 V Breaking Capacity According to IEC/EN 60898 standard (typically 6-10 kA) Standards Compliance IEC/EN 60898-1 Mounting Snap-on mounting on 35 mm top-hat rail (DIN rail) Connection Screw terminals

Key Parameters Category Description / Value Product Line Eaton PL (Miniature Circuit Breakers) Rated Current (Iₙ) 32 A Number of Poles 3-Pole Tripping Characteristic D-Curve (Instantaneous trip between 10-20 x Iₙ) Rated Operational Voltage (Uₑ) 400/415 V AC (Three-Phase) Rated Insulation Voltage (Uᵢ) 500 V Breaking Capacity According to IEC/EN 60898 standard (typically 10 kA) Standards Compliance IEC/EN 60898-1 Mounting Snap-on mounting on 35 mm top-hat rail (DIN rail) Connection Screw terminals

Key Parameters Category Description / Value Product Line Eaton E (Residual Current Releases) Type Residual Current Release (RCD Module) Compatible Main Device Specific Eaton load breakers (e.g., certain PL, EZ9 series MCBs). Poles For use with 1-pole (1P) main devices. Rated Residual Operating Current (IΔn) 30 mA (0.03 A) Test Function Manual Test Button (as indicated by "ME" suffix) Mounting Side-mounted onto the compatible load breaker. Connection Wiring for the current transformer and auxiliary connections.
