Technical Parameters Parameter Category Specification Details General Model DILM1000C-XHI11-SA DILM Series, 1000A, Electronic Coil Module, SA Terminals Product Line Eaton DILM High Performance Line Main Contact Characteristics Rated Operational Current (Ie) 1000 A (at AC-3, 600V) Rated Thermal Current (Ith) 1000 A Rated Insulation Voltage (Ui) 1000 V Rated Operational Voltage (Ue) Up to 690V AC Motor Power Rating (AC-3) 1000 HP (at 600V AC) Poles 3 (Main Poles) Coil & Control Module (-XHI11) Control Supply Voltage The "-XHI11" module is designed for a specific control voltage range. This is critical to confirm, but common versions include a wide range like 24-240V AC/DC. The module allows low-current control. Power Consumption Significantly reduced holding power due to the electronic module. Functions Soft start/stop, Energy saving mode, Diagnostic LED. Mechanical Characteristics Terminal Type SA - Specific terminal style, commonly stud or saddle-clamp terminals for main power connections. Electrical Durability High number of cycles (e.g., > 1 million at rated current). Mounting Fixed mounting. Standards & Compliance Safety Standards UL 508, CSA C22.2 No. 14, IEC/EN 60947-4-1

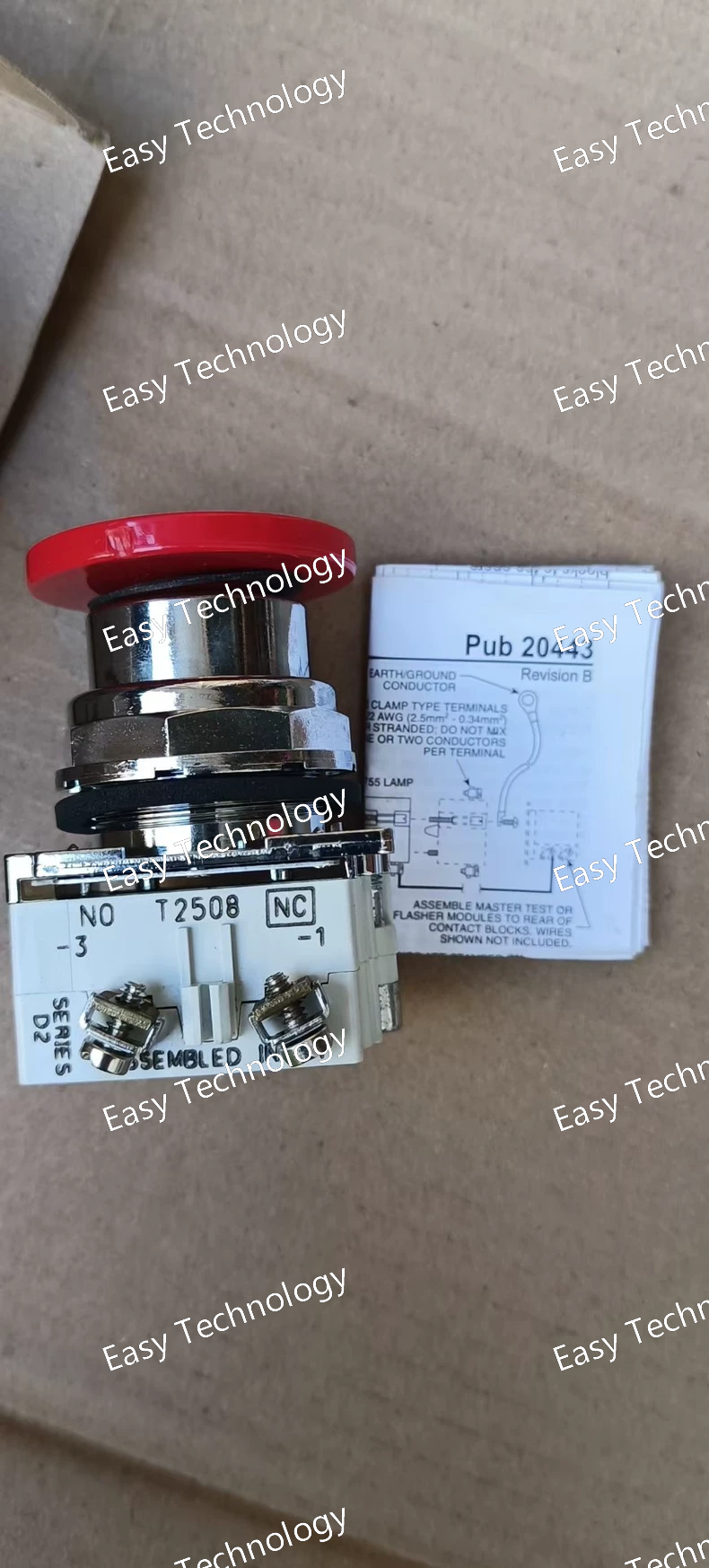

Technical Parameters Parameter Category Specification Details General Model 10250T5B63-1X T5 Series, Specific Color, Voltage, and Contact Configuration Product Line Eaton Cutler-Hammer T5 Operator Characteristics Operator Type Illuminated, Maintained (Latching) Push Button Lens Color The code "B63" typically corresponds to a specific color. Based on common coding, this is very likely Black. Operator Style Standard or large button (specific to T5 series). Electrical Characteristics Voltage Code The "B63" code also incorporates the voltage for the lamp. This needs verification, but it often corresponds to a common voltage like 120V AC. Lamp Type & Power Typically an incandescent or LED bulb (e.g., 120V, 6W). Modern versions may use long-life LEDs. Contact Block The "1X" indicates a specific contact block configuration. It is commonly a 1NO (Normally Open) + 1NC (Normally Closed) contact block. Rated Current Typically 10A @ 600V AC or 5A @ 600V AC for control circuits. Mechanical & Environmental Mounting Panel-mounted through a 22mm or 1-3/8" round hole. Enclosure Rating NEMA 4X / 13 (Oil-tight, Watertight, Dust-tight) and IP65 Material Thermoplastic body, polycarbonate lens.

Technical Parameters Parameter Category Specification Details General Model DILM1000C-XHI11-Sl DILM Series, 1000A, Electronic Coil Module, Screw Terminals Product Line Eaton DILM High Performance Line Main Contact Characteristics Rated Operational Current (Ie) 1000 A (at AC-3, 600V) Rated Thermal Current (Ith) 1000 A Rated Insulation Voltage (Ui) 1000 V Rated Operational Voltage (Ue) Up to 690V AC Motor Power Rating (AC-3) 1000 HP (at 600V AC) Poles 3 (Main Poles) Coil & Control Module (-XHI11) Control Supply Voltage The "-XHI11" module is designed for a specific control voltage range. This is crucial to confirm, but common versions include 24-240V AC/DC or other wide ranges. The module allows low-current control. Power Consumption Significantly reduced holding power due to the electronic module. Functions Soft start/stop, Energy saving mode, Diagnostic LED. Mechanical Characteristics Terminal Type Sl - Screw line terminals for main power connections. Electrical Durability High number of cycles (e.g., > 1 million at rated current). Mounting Fixed mounting, typically on a flat surface or rail adapter. Standards & Compliance Safety Standards UL 508, CSA C22.2 No. 14, IEC/EN 60947-4-1

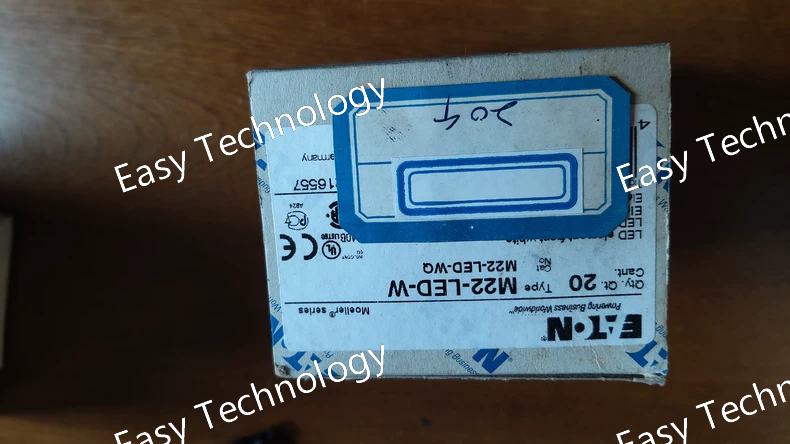

Technical Parameters Parameter Category Specification Details General Model M22-LED-W M22 Connector, LED Indicator, Color "W" (White) Product Line Eaton M22 Cordsets / Sensor-Actuator Cables Connector Characteristics Connector Type M22 (Standard metric threaded connection) Thread Pitch M22 x 1.5 Pin Configuration Most commonly 4-pin (This is a critical specification to verify from the datasheet). Coupling Standard M22 locking nut. LED Indicator LED Color W - White Voltage for LED Operates from the connected circuit's voltage (e.g., 10-30V DC). It may include a built-in current-limiting resistor. Cable Characteristics Cable Type Pre-wired, shielded or unshielded, with flying leads (open ends). Cable Length Available in standard lengths (e.g., 2 meters, 5 meters). The specific length is not encoded in the model number and must be specified or confirmed separately. Cable Jacket Typically PVC or PUR, offering flexibility and resistance to oil and chemicals. Wire Gauge Commonly 0.34 mm² (AWG 22) or similar. Electrical Ratings Rated Voltage Typically up to 30V DC / 250V AC Rated Current Typically 2A per pin / 4A overall IP Rating IP67 when properly connected and locked (Dust-tight and protected against temporary immersion).

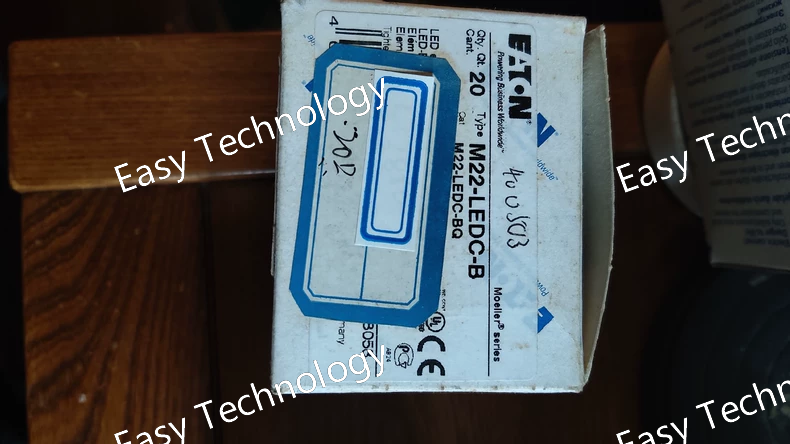

Technical Parameters Parameter Category Specification Details General Model M22-LEDC-B M22 Connector, LED Indicator, Color Code "B" (e.g., Red) Product Line Eaton M22 Cordsets / Sensor-Actuator Cables Connector Characteristics Connector Type M22 (Standard metric threaded connection) Thread Pitch M22 x 1.5 Pin Configuration Most commonly 4-pin (Please verify for this specific model). Gender Typically a male or female plug designed to mate with the device's female or male socket. LED Indicator LED Color B (Commonly Red. Other codes: W=White, G=Green, A=Amber/Blue). Voltage for LED Dependent on the connected circuit (e.g., 10-30V DC). Cable Characteristics Cable Type Pre-wired, shielded or unshielded, with flying leads. Cable Length Standard lengths available (e.g., 2m, 5m). The exact length must be confirmed. Cable Jacket Typically PVC or PUR for oil and chemical resistance. Wire Gauge Commonly 0.34 mm² (AWG 22) or similar. Electrical Ratings Rated Voltage Typically 30V DC / 250V AC Rated Current Typically 2A per pin / 4A overall IP Rating IP67 when properly connected (Dust-tight and protected against immersion).

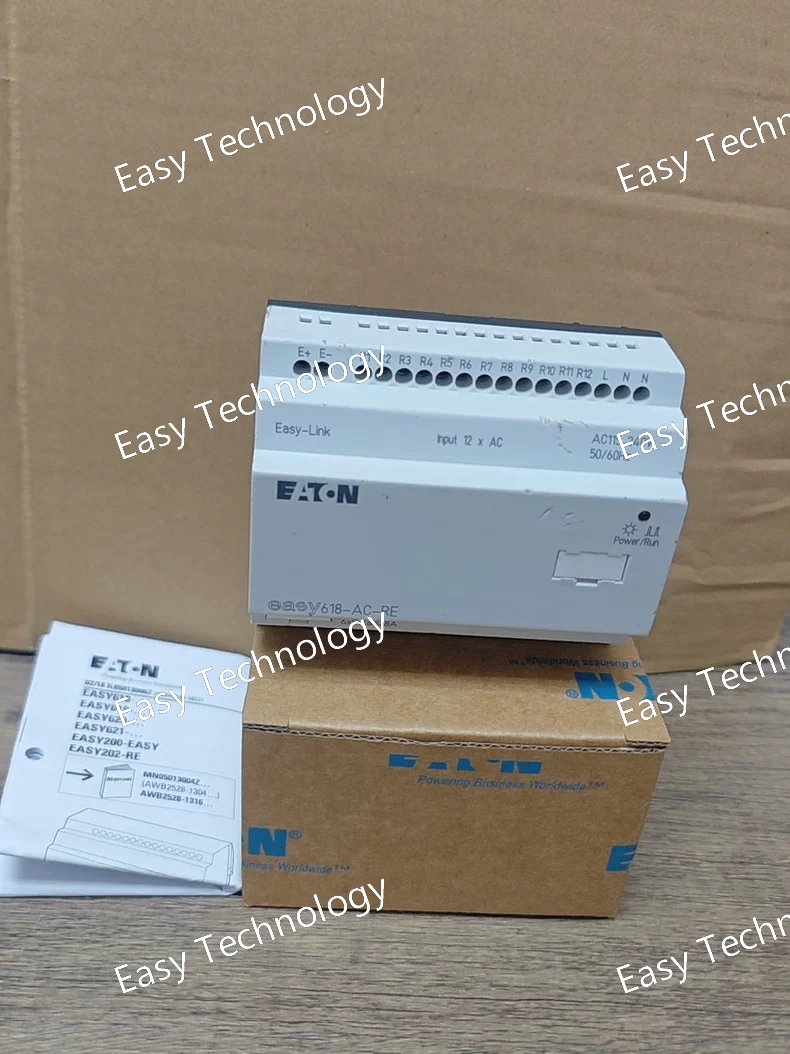

Technical Parameters Parameter Category Specification Details General Model EASY618-AC-RE EASY Series, 600V, Self-Powered, Specific Function Set Product Line Eaton EASY Motor Relay Power Supply Auxiliary Power Not Required (Self-Powered). Operates directly from the monitored motor current and line voltage. Electrical Characteristics Rated Operational Voltage (Ue) Up to 690V AC Rated Insulation Voltage (Ui) 750V AC Current Setting Range (I~r~) Typically 0.1A to 63A (adjustable via DIP switches and a potentiometer). Specific ranges depend on the internal CT. Power Consumption None (Self-Powered) Protection Functions Overload (ANSI 49) Yes, with selectable tripping class (10, 15, 20, 30) Phase Loss / Unbalance (ANSI 46) Yes Locked Rotor / Jam (ANSI 48/51) Yes Short-Circuit (ANSI 50) Yes Earth Fault (ANSI 51G/50G) Yes (Residual current type) Undercurrent (ANSI 37) Yes Control & Output Output Relays At least one volt-free changeover (CO) contact for Trip/Alarm. Reset Function Automatic or Manual (selectable) Mechanical Characteristics Mounting Standard 35mm DIN Rail Connection Screw terminals Standards & Compliance Safety Standards UL 508, CSA C22.2 No. 14, CE, IEC/EN 60947-4-1, IEC/EN 60947-5-1

Technical Parameters Parameter Category Specification Details General Model EU5E-SWD-8DX Form 4S, Three-Phase, 4-Wire Advanced Power Meter Product Line Eaton Crouse-Hinds Series / Power Xpert Metering Electrical Characteristics System Type Three-Phase, 4-Wire (3P4W - Wye) Rated Voltage 347/600V AC (Line-to-Line) Current Input Via external Current Transformers (CTs) with standard secondary ratings of 5A or 1A. Frequency 50/60 Hz Measurement Capabilities Basic Parameters Volts (L-N, L-L), Amps, Frequency, Real/Reactive/Apparent Power (kW, kvar, kVA), Power Factor, Demand (current & power) Energy Import/Export kWh, kvarh Power Quality Voltage and Current THD, Individual Harmonics (up to 63rd), K-Factor, Unbalance, Min/Max/Average values, Sag/Swell/Interruption log. Advanced Features Waveform Capture, Event Logging, Phasor Diagrams. Communication Standard Ports Typically includes Ethernet (for Modbus TCP/IP or BACnet IP) and other serial ports like RS-485. Protocols Modbus TCP/IP, BACnet IP, Modbus RTU over RS-485 are common. Display High-resolution, backlit graphical LCD with intuitive navigation. Accuracy Standard ANSI C12.20 Class 0.2 (Revenue Grade) Voltage & Current ±0.1% of Reading (typical) Power & Energy ±0.2% of Reading (typical) Physical & Environmental Mounting Hardwired installation into a dedicated meter socket within an Eaton panelboard or enclosure. Operating Temperature -40°C to +70°C (-40°F to +158°F)

Technical Parameters Parameter Category Specification Details General Model EU5E-SWD-4D4D Form 4S, Three-Phase, 4-Wire Meter with advanced digital features. Product Line Eaton Crouse-Hinds Series / Power Xpert Metering Electrical Characteristics System Type Three-Phase, 4-Wire (3P4W - Wye) Rated Voltage 347/600V AC (Line-to-Line) Operating Voltage Range Typically up to 600V AC L-L Current Input Via external Current Transformers (CTs). Common secondary ratings: 5A or 1A. Frequency 50/60 Hz Measurement Capabilities Basic Parameters Volts (L-N, L-L), Amps, Frequency, Real/Reactive/Apparent Power (kW, kvar, kVA), Power Factor, Demand (kW, kVA, A) Energy Import/Export kWh, kvarh Power Quality Total Harmonic Distortion (THD) for V & I, Individual Harmonics up to the 63rd, Min/Max/Average recordings, Sag/Swell detection. Communication Communication Slots 2 slots for optional communication modules. Available Protocols Modbus TCP/IP, BACnet IP, SNMP, and others via plug-in cards. Display & Interface Integrated large, backlit LCD with navigation buttons. Accuracy Standard ANSI C12.20 Class 0.2 (Extremely high accuracy, revenue grade) Voltage & Current ±0.2% of Reading Power & Energy ±0.2% of Reading Physical & Environmental Mounting Hardwired installation into a dedicated meter socket within an Eaton enclosure. Operating Temperature -40°C to +70°C (-40°F to +158°F)

Technical Parameters Parameter Category Specification Details General Model SN4-050-B17 S Series, 4-pole, specific coil voltage and contact configuration. Product Line Eaton S Series Contact Characteristics Number of Poles 4 Contact Type Changeover (Form C, SPDT) - Each pole has Common (C), Normally Open (NO), and Normally Closed (NC) terminals. Rated Operational Current (Ith) Typically 5 A (e.g., at 240V AC) Rated Thermal Current (Ithe) 10 A Rated Impulse Withstand Voltage (Uimp) 6 kV Rated Operational Voltage (Ue) Up to 250V AC / 30V DC Coil Characteristics Coil Voltage Code 050 (This code corresponds to a specific voltage. The most common interpretation for 050 is 240V AC. However, this must be verified.) Coil Power Consumption Approx. 4.5 VA (AC) / 1.8 W (DC) - typical values Mechanical Characteristics Electrical Durability > 10 million operations (at rated operational current) Mechanical Durability > 20 million operations Mounting Snap-on side mounting to compatible S Series contactors (e.g., DILM contactors) or onto a standard 35mm DIN rail using an optional adapter. Standards & Compliance Safety Standards UL 508, CSA C22.2 No. 14, CE, cULus, IEC/EN 60947-5-1

Technical Parameters Parameter Category Specification Details / Notes General Model XN-2DO-R-CO 2 Digital Outputs, Relay, Change-Over Product Line Eaton X-Nergy Part of the Moeller series of control products. Output Characteristics Number of Channels 2 Contact Type Change-Over (Form C, SPDT) • Common (C) • Normally Open (NO) • Normally Closed (NC) Rated Current 5 A @ 250V AC 5 A @ 30V DC Max. Switching Voltage 250V AC / 30V DC Max. Switching Power 1250 VA / 750 W (AC) 90 W (DC) Electrical Durability Typically > 100,000 cycles (at rated load) Mechanical Durability Typically > 10,000,000 cycles Control & Communication Control Supply Voltage Provided via the X-Nergy base (e.g., 24V DC from XN-BR-24VDC-D). The logic side is powered by this bus voltage. Communication Bus X-Nergy System Bus (integrated into the base). Status Indication LED Indicators 2 yellow/green LEDs (one per channel) to indicate the output state. Electrical Connection Field-Side Connection Screw clamp terminals for load wiring (C, NO, NC for each channel). Control-Side Connection Via plug-in connection to the X-Nergy base. Mechanical Characteristics Mounting Plugs onto a standard 35mm DIN rail via the X-Nergy base. Module Width Multiple of a standard module width (e.g., 45mm). Standards & Approvals Safety & EMC UL 508, CSA C22.2 No. 14, CE marked, cULus listed.
