The B&R X20IF10G3-1 is an input module used in automation systems. It is designed to interface with digital inputs, making it suitable for various industrial control and monitoring applications.

Material number:
X20BB52
Description:
Base for all X20 Compact-S controllers
RS232 connection
The bus module is the base for all X20 Compact-S controllers.

The left and right end cover plates are included in delivery.

Material number:
X20DC4395
Description:
24 VDC encoder inputs
SSI, ABR, AB or event counters for inputs
Pulse width modulation for outputs
24 VDC and GND for encoder supply
This module is a multifunctional counter module. It can be connected to two SSI encoders, two ABR encoders, four AB encoders or eight event counters. Four outputs are available for pulse width modulation. The functions can also be mixed.

Material number:
X20IF1061-1
Description:
PROFIBUS DP V1 master
The interface module is equipped with a PROFIBUS DP V1 interface. This allows third-party components to be integrated in the B&R system and makes it possible to quickly and easily transfer data in both directions.

The interface module can be operated in the X20 controllers or in the expandable X20BC1083 POWERLINK bus controller.

Material number:
X20AT2222
Description:
2 inputs for resistance temperature measurement
For PT100 and PT1000
Configurable sensor type per channel
Direct resistance measurement
Configurable 2- or 3- wire connections per module
Configurable filter time
The module is equipped with 2 inputs for PT100/PT1000 resistance temperature measurement.

This module is designed for X20 6-pin terminal blocks. If needed (e.g. for logistical reasons), the 12-pin terminal block can also be used.

Material number:
X20AI8221
Description:
8 analog inputs ±10 V
13-bit digital converter resolution
The module is equipped with 8 inputs with 13-bit (including sign) digital converter resolution. It can be used to capture voltage signals in the range from ±10 V.

X20CP1586
Description:
Intel Atom 1.6 GHz processor with an additional I/O processor
Onboard Ethernet, POWERLINK with poll response chaining and USB
1 slot for modular interface expansion
CompactFlash as removable application memory
512 MB DDR2 SDRAM
Fanless
The X20CP1586 is a powerful controller for the X20 system. This controller is especially useful for applications that require short cycle times, have to process very large amounts of data or carry out floating point operations. It is clocked at 1.6 GHz and equipped with 512 MB DDR2 SDRAM.

USB, Ethernet, POWERLINK and removable CompactFlash are all included as standard features. The standard Ethernet interface is capable of handling communication in the gigabit range. For even more real-time network performance, the onboard POWERLINK interface supports poll response chaining mode (PRC).

The controller is equipped with one slot available for X20 communication modules. Various bus and network systems can easily be integrated into the X20 system through the use of communication modules.

X20IF10E1-1
Description:
PROFINET IO controller
Integrated switch for efficient cabling
The interface module is equipped with a PROFINET IO controller interface. This allows third-party components to be integrated in the B&R system and makes it possible to quickly and easily transfer data in both directions.

The interface module can be operated in the X20 controllers or in the expandable X20BC1083 POWERLINK bus controller.

The interface is equipped with 2 RJ45 connections. Both connections result in an integrated switch. This makes it easy to implement daisy chain cabling.

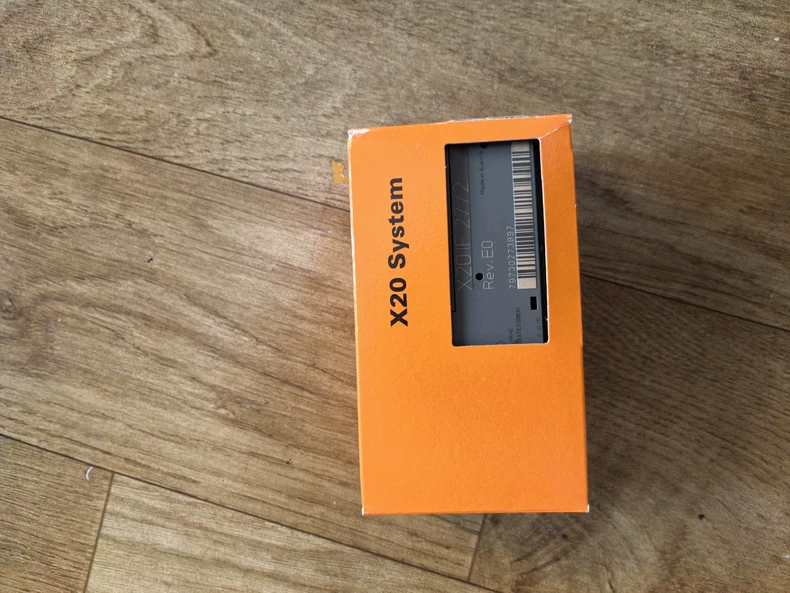

The X20IF2772 is a high-performance PROFINET interface module designed for seamless integration of B&R's X20 I/O system into industrial Ethernet networks. This advanced communication module delivers real-time industrial Ethernet connectivity with exceptional synchronization accuracy for demanding automation applications.

The X20DM9324 is a high-density 16-channel digital output module designed for B&R's X20 automation system. This compact module provides efficient control of actuators and indicators in space-constrained applications, featuring transistor outputs with individual channel diagnostics.
