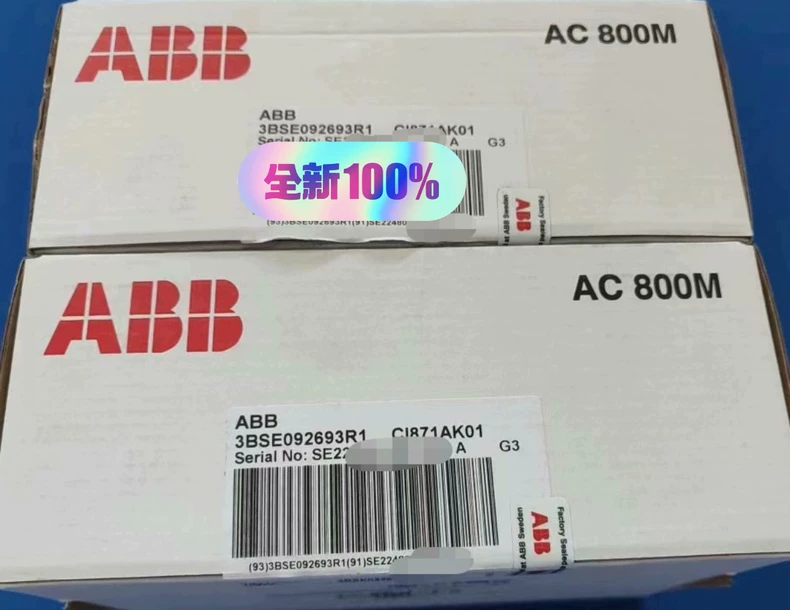

Key Features
✔ PROFINET IO Controller (Conformance Class B)
✔ Dual-port switch for line topology (100 Mbps Fast Ethernet)
✔ Real-time communication (PROFINET IRT supported)
✔ Cybersecurity features (IEC 62443 compliant)
✔ Hot-swappable design (in redundant configurations)
✔ Advanced diagnostics with LED status indicators
✔ Industrial ruggedness (-25°C to +60°C operation)

Technical Specifications
Parameter Specification
Manufacturer P/N 3BSE092693R1
Interface Type PROFINET IO Controller
Ports 2 x RJ45 (100BASE-TX)
Protocols PROFINET IO, TCP/IP, UDP, ICMP
Real-time Class IRT (Isochronous Real-Time)
Cycle Time ≤1ms (configurable)
Power Supply 24V DC via backplane
Certifications CE, UL, ATEX (optional)
Typical Applications
Factory Automation (automotive production lines)

Process Industries (batch control systems)

Packaging Machinery (high-speed equipment)

Material Handling (conveyor systems)

Energy Systems (power distribution control)

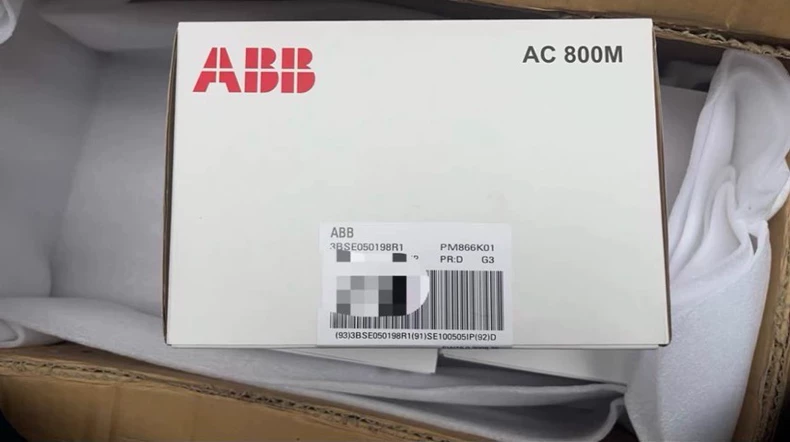

Key Features
✔ Dual-CPU Redundancy

1:1 hot standby configuration

Automatic switchover (<100ms)

99.999% availability for critical processes

✔ Powerful Processing Capability

800 MHz PowerPC processor

512 MB RAM for complex control strategies

Supports 250,000 I/O points (system-wide)

✔ Industrial Communication

Dual Ethernet ports (10/100 Mbps)

Supports PROFIBUS DP, Modbus TCP, OPC UA

Optional PROFINET, FF HSE communication

✔ Robust Industrial Design

Operating temperature: -40°C to +70°C

Vibration and shock resistant

IP20 protection (higher protection optional)

✔ Cybersecurity

IEC 62443 compliant

Role-based access control

Secure firmware updates

Technical Specifications
Parameter Specification
Processor 800 MHz PowerPC
Memory 512 MB RAM / 128 MB Flash
Redundancy 1:1 hot standby
I/O Capacity Up to 250,000 points
Communication Ethernet, PROFIBUS DP, Modbus TCP
Power Supply 24V DC (redundant)
Certifications CE, UL, ATEX (optional)
Typical Applications
Oil & Gas (refineries, pipelines)

Power Generation (turbine control)

Chemical Processing (batch reactors)

Pharmaceutical (GMP manufacturing)

Water Treatment (SCADA systems)

Key Features & Benefits
✔ PROFIBUS DP-V1 Master Functionality

Full compliance with IEC 61158/61784 standards

Supports both cyclic and acyclic data exchange

✔ High-Performance Communication

Auto-negotiating baud rates from 9.6 kbps to 12 Mbps

Optimized for real-time control applications

✔ Industrial Reliability

Operating temperature range: -25°C to +60°C

500V galvanic isolation for noise immunity

Hot-swappable design (in redundant configurations)

✔ Advanced Diagnostics

Comprehensive LED indicators for:

Power status

Communication activity

Error conditions

✔ Seamless Integration

Native compatibility with AC 800M controllers (PM851, PM861, etc.)

Direct integration with System 800xA DCS

Technical Specifications
Parameter Specification
Manufacturer P/N 3BSE069449R1
Interface Standard PROFIBUS DP-V1
Connector Type 9-pin D-sub male (RS-485)
Data Transfer Rate 9.6 kbps - 12 Mbps
Isolation 500V galvanic
Power Supply 24V DC via backplane
Certifications CE, UL, ATEX (optional)
Typical Applications
Process Automation
(Oil & gas refineries, chemical plants)

Manufacturing Systems
(Automotive production, packaging lines)

Power Generation
(Turbine control, substation automation)

Water Treatment
(Pump station control, SCADA systems)

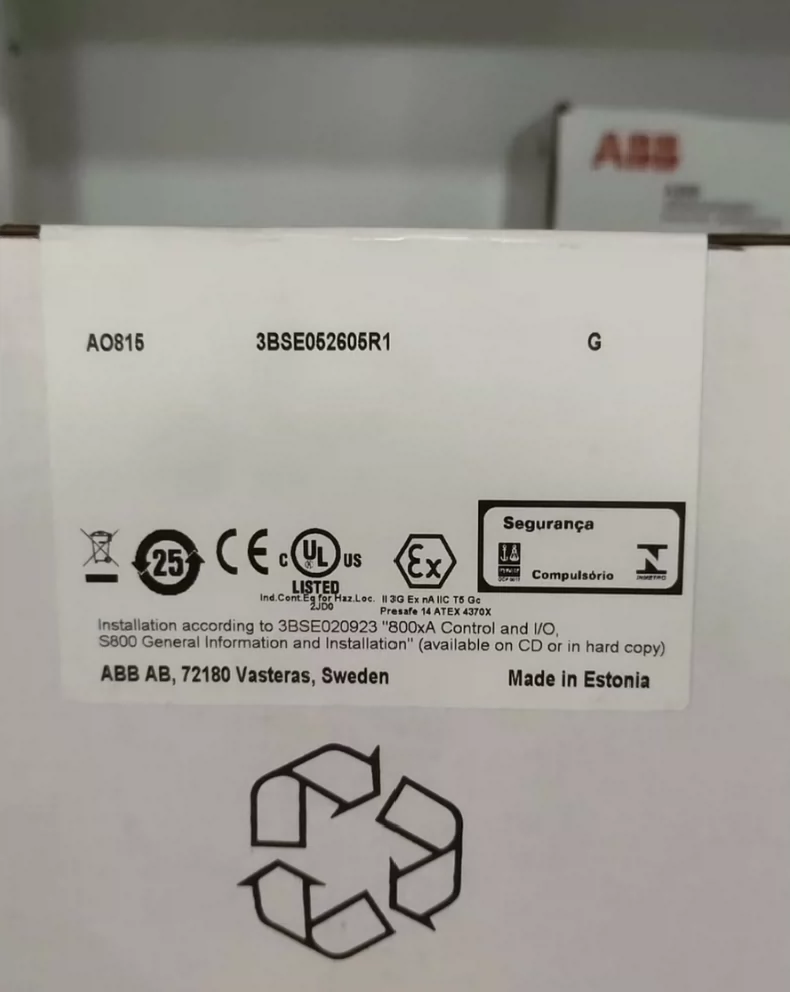

Key Features
✔ 8 Isolated Analog Outputs

Configurable as 4-20mA, 0-20mA, or ±10V

16-bit resolution for high-precision control

✔ Advanced Functionality

Channel-by-channel configuration

Short-circuit protection on all outputs

Open-wire detection (current mode)

✔ Industrial Reliability

Operating temperature: -25°C to +60°C

500V galvanic isolation (channel-to-channel and system)

Hot-swappable in compatible systems

✔ Diagnostic Capabilities

Per-channel LED status indicators

Comprehensive fault reporting

Technical Specifications
Parameter Specification
Manufacturer P/N 3BSE052605R1
Output Type Current/Voltage (software configurable)
Current Output 4-20mA / 0-20mA (±0.1% accuracy)
Voltage Output ±10V (±0.1% accuracy)
Resolution 16-bit
Update Rate ≤1ms per channel
Load Impedance ≤500Ω (current), ≥1kΩ (voltage)
Power Supply 24V DC via backplane
Certifications CE, UL, ATEX (optional)
Typical Applications
Process Control Valves (position control)

Variable Speed Drives (speed reference)

Analog Actuators

Test & Measurement Systems

Batch Process Control

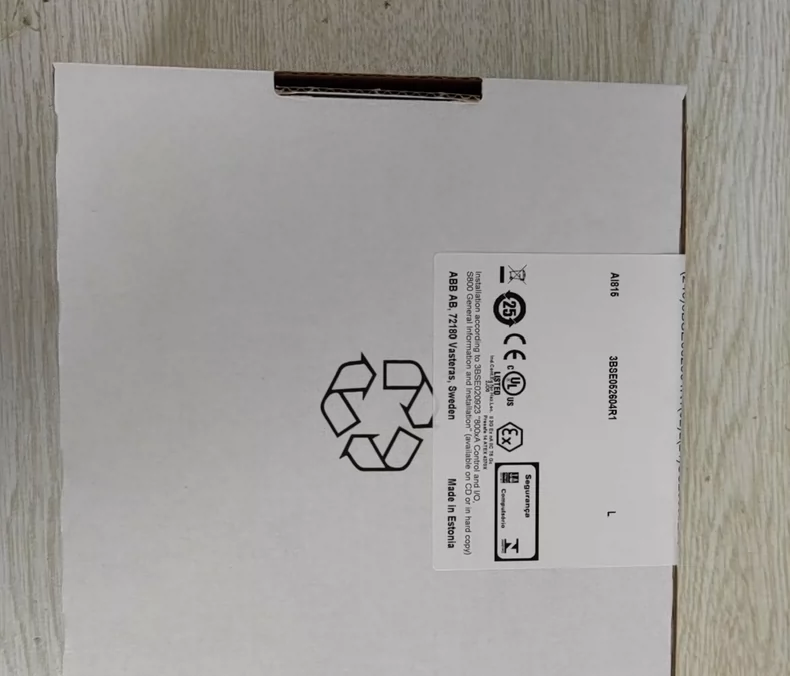

Key Features
✔ Versatile Input Configuration

Supports 4-20mA, 0-20mA, ±10V, and thermocouple/mV inputs (software configurable)

16-bit resolution (0.01% accuracy) for precise measurement

✔ Advanced Signal Processing

Built-in digital filtering for noise reduction

Open-wire detection (for current inputs)

Over-range protection (up to ±30V)

✔ Industrial Reliability

500V galvanic isolation (channel-to-channel and system)

Operating temperature: -25°C to +60°C

Hot-swappable in compatible systems

✔ Comprehensive Diagnostics

Per-channel LED status indicators

Detailed fault reporting via control system

Technical Specifications
Parameter Specification
Manufacturer P/N 3BSE052604R1
Input Type Current/Voltage/Thermocouple
Current Input 4-20mA/0-20mA (±0.05% accuracy)
Voltage Input ±10V/±100mV (±0.05% accuracy)
Resolution 16-bit
Sampling Rate ≤1ms per channel
Input Impedance 250Ω (current), >1MΩ (voltage)
Common Mode Rejection >120dB
Power Supply 24V DC via backplane
Certifications CE, UL, ATEX (optional)
Typical Applications
Process Variable Monitoring (pressure, temperature, flow)

Equipment Condition Monitoring

Quality Control Systems

Energy Management Systems

Laboratory InstrumentationSystem Integration
Compatible With:

ABB AC 800M controllers

System 800xA DCS

S800 I/O base units

Key Features
✔ PROFIBUS DP-V1 Master Functionality

Full compliance with IEC 61158 Type 3 standard

Supports cyclic and acyclic data communication

Up to 244 bytes input/output data per slave

✔ High-Performance Communication

Auto-negotiating baud rates from 9.6 kbps to 12 Mbps

<1ms cycle time for fast response applications

✔ Industrial Reliability

Operating temperature: -25°C to +60°C

500V galvanic isolation for noise immunity

Hot-swappable in redundant configurations

✔ Advanced Diagnostics

Dual-color LED indicators for:

Power status

Bus activity

Error conditions

Comprehensive diagnostic data via controller

Technical Specifications
Parameter Specification
Manufacturer P/N 3BSE030220R1
Interface Type PROFIBUS DP-V1
Connector 9-pin D-sub male (RS-485)
Protocol Support DP-V0/V1
Max. Stations 125 slaves
Power Supply 24V DC via backplane
Isolation 500V galvanic
Certifications CE, UL, ATEX (optional)
Typical Applications
Process Automation (oil & gas, chemical plants)

Manufacturing Systems (automotive production)

Power Generation (turbine control)

Material Handling (conveyor systems)

Water Treatment (pump station control)

System Integration
Compatible Controllers:

ABB AC 800M (PM856, PM866, etc.)

System 800xA DCS

Field Device Connectivity:

PROFIBUS DP slaves (Siemens, ABB, etc.)

Remote I/O stations

Motor drives and actuators

Key Features
✔ PROFIBUS DP-V1 Master Functionality

Full compliance with IEC 61158/61784 standards

Supports cyclic and acyclic data exchange

Automatic baud rate detection (9.6kbps to 12Mbps)

✔ Industrial Reliability

Operating temperature range: -25°C to +60°C

500V galvanic isolation for noise immunity

Hot-swappable in redundant configurations

✔ Advanced Diagnostics

LED indicators for power, status and communication

Comprehensive diagnostic capabilities

Supports PROFIBUS DP-V1 extended diagnostics

✔ Flexible Integration

Native compatibility with AC 800M controllers

Direct integration with System 800xA DCS

Supports up to 125 PROFIBUS DP slaves

Technical Specifications
Parameter Specification
Interface Type PROFIBUS DP-V1 (RS-485)
Connector 9-pin D-sub male
Communication Speed 9.6kbps - 12Mbps (auto-detect)
Power Supply 24V DC via backplane
Isolation 500V galvanic
Protection Class IP20
Certifications CE, UL
Typical Applications
Process automation systems

Manufacturing execution systems

Power generation control

Water treatment plants

Material handling systems

Key Features
✔ PROFIBUS DP-V1 Master Functionality

Full compliance with IEC 61158/61784 standards

Supports both cyclic and acyclic data communication

Automatic baud rate detection (9.6kbps to 12Mbps)

✔ Industrial-Grade Reliability

Operating temperature: -25°C to +60°C

500V galvanic isolation for noise immunity

Hot-swappable design (in redundant configurations)

✔ Advanced Diagnostics

LED status indicators for power, communication and errors

Comprehensive diagnostic capabilities

Supports PROFIBUS DP-V1 extended diagnostics

✔ Seamless Integration

Native compatibility with AC 800M controllers

Direct integration with System 800xA DCS

Supports up to 125 PROFIBUS DP slaves

Technical Specifications
Parameter Specification
Interface Type PROFIBUS DP-V1 (RS-485)
Connector 9-pin D-sub male
Communication Speed 9.6kbps - 12Mbps (auto-detect)
Power Supply 24V DC via backplane
Isolation 500V galvanic
Protection Class IP20
Certifications CE, UL, ATEX (optional)
Typical Applications
Process automation in oil & gas refineries

Manufacturing execution systems

Power plant control systems

Water and wastewater treatment

Material handling automation

Key Features
✔ High-Performance Analog Outputs

8 isolated channels (channel-to-channel and system isolation)

Configurable as 4-20mA, 0-20mA, or ±10V outputs

16-bit resolution for precise control

✔ Advanced Functionality

Individual channel configuration

Short-circuit protection on all current outputs

Open-circuit detection (for current outputs)

Overload protection (for voltage outputs)

✔ Industrial Reliability

Operating temperature: -25°C to +60°C

500V galvanic isolation

Hot-swappable in compatible systems

✔ Comprehensive Diagnostics

Per-channel LED status indicators

Detailed fault reporting via control system

Technical Specifications
Parameter Specification

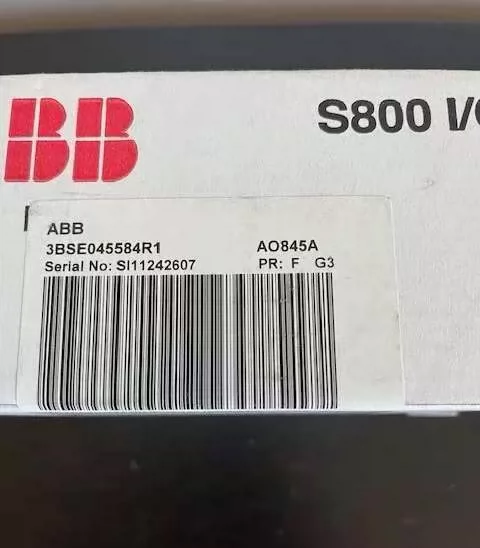

Manufacturer P/N 3BSE045584R1
Output Type Current/Voltage (software configurable)
Current Output 4-20mA / 0-20mA (±0.1% accuracy)
Voltage Output ±10V (±0.1% accuracy)
Resolution 16-bit
Update Rate ≤1ms per channel
Load Impedance ≤500Ω (current), ≥1kΩ (voltage)
Power Supply 24V DC via backplane
Certifications CE, UL, ATEX (optional)
Typical Applications
Process Control Valves (position control)

Variable Speed Drives (speed reference)

Analog Actuators

Test & Measurement Systems

Batch Process Control

System Integration
Compatible With:

ABB AC 800M controllers

System 800xA DCS

S800 I/O base units

Configuration:

Programmed via ABB Control Builder

Supports Foundation Fieldbus or PROFIBUS PA networks

Key Features
✔ PROFIBUS DP-V1 Master Functionality

Full compliance with IEC 61158/61784 standards

Supports both cyclic and acyclic communication

Automatic baud rate detection (9.6kbps to 12Mbps)

✔ Industrial-Grade Reliability

Operating temperature: -25°C to +60°C

500V galvanic isolation for noise immunity

Hot-swappable in redundant configurations

✔ Advanced Diagnostics

LED indicators for power, status and communication

Comprehensive diagnostic capabilities

Supports PROFIBUS DP-V1 extended diagnostics

✔ Seamless Integration

Native compatibility with AC 800M controllers

Direct integration with System 800xA DCS

Supports up to 125 PROFIBUS DP slaves

Technical Specifications
Parameter Specification
Interface Type PROFIBUS DP-V1 (RS-485)
Connector 9-pin D-sub male
Communication Speed 9.6kbps - 12Mbps (auto-detect)
Power Supply 24V DC via backplane
Isolation 500V galvanic
Protection Class IP20
Certifications CE, UL, ATEX (optional)
Typical Applications
Process automation systems

Manufacturing execution systems

Power plant control

Water treatment plants

Material handling systems
