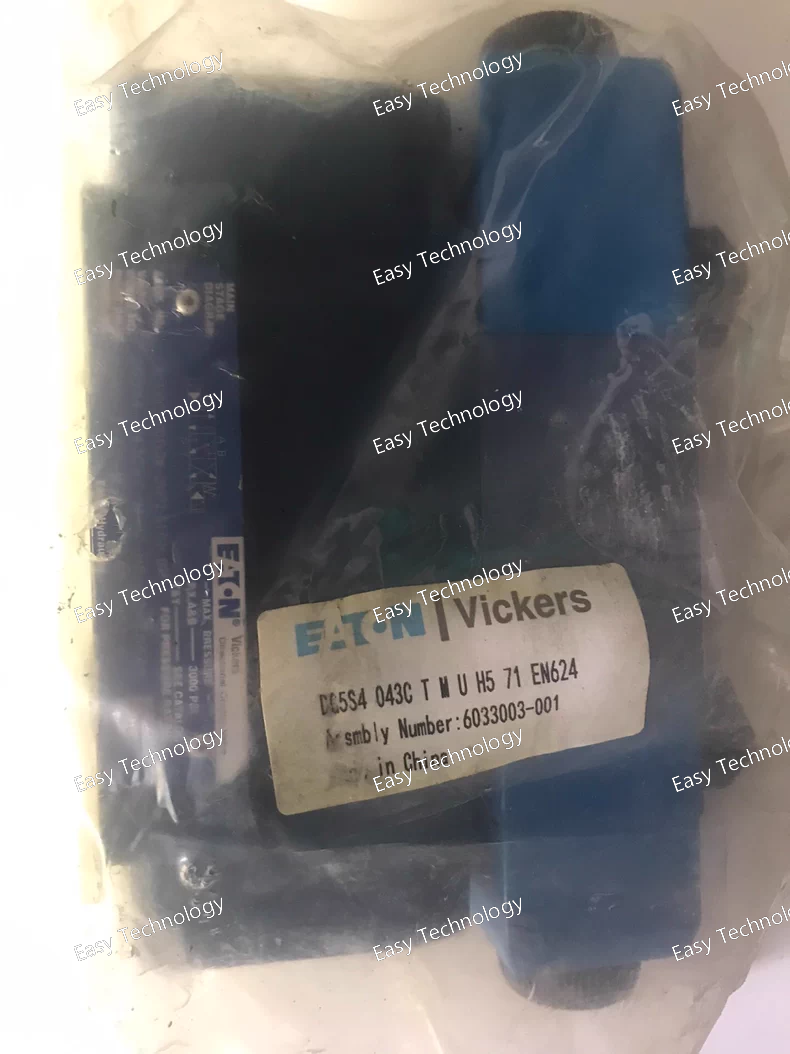

Technical Specifications Valve Type: Pilot-operated, solenoid-controlled directional control valve (two-stage) Series: DG5S4-04 (subplate / manifold mount; ISO 4401 Size 07) Actuation / Operation: Pilot operated, solenoid controlled Coil / Electrical Connection: 24 V DC coil, ISO 4400 (DIN 43650) connector Mounting Interface: ISO 4401-07 (subplate / manifold mount) Flow Capacity: Up to 227 L/min (≈ 60 US gpm) Maximum Operating Pressure: 210 bar (≈ 3000 psi) Body Material: Gray Iron, solid cast with cored passages Seal Material: Standard Buna-N (nitrile) Spool Type / Spool Arrangement: Two-stage spool, spring-centered spool arrangement Stage: Two-stage directional valve Fluid Compatibility: Petroleum-based hydraulic oils Fluid Cleanliness Requirement: 19/17/14 (micron) Operating Temperature Range: –20 °C to +70 °C (approx. –4°F to +158°F) Mount Type: Subplate / manifold mount Manual Override: Plain (no special override) Tank / Return Port Rating: same as pressure rating (210 bar / 3000 psi) Pilot Pressure Type: Internal pilot supply External Features: Standard performance (no special features like explosion-proof, spool monitoring, or damping — unless configured differently)

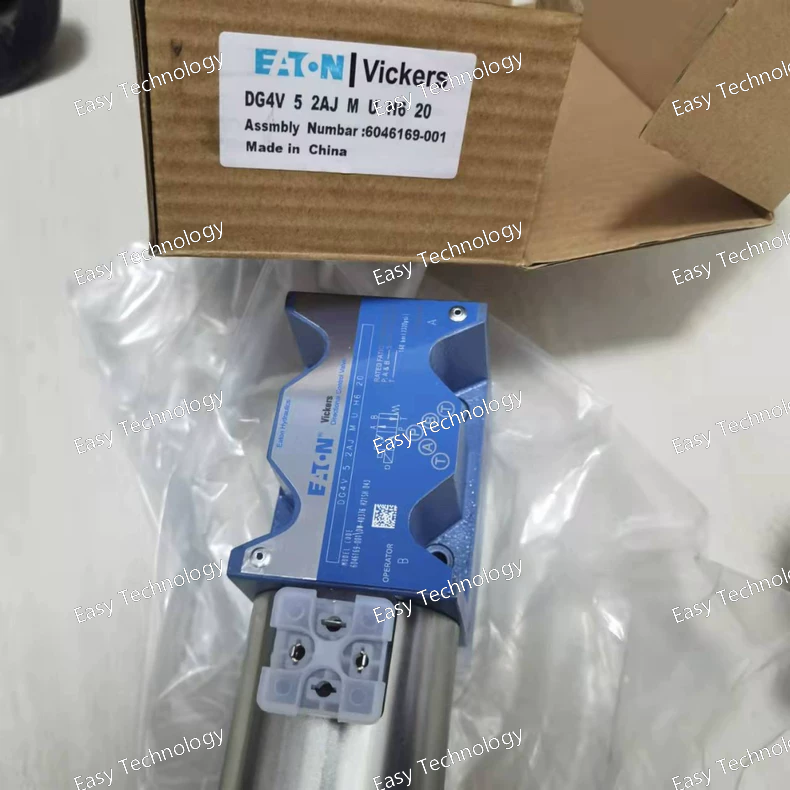

Technical Specifications Brand / Series: Vickers by Eaton — DG4V-5 (22 series) Model Code: DG4V-5-2AJ-M-U-H7-22 Valve Type: 4-way directional control valve (solenoid-operated) Mounting / Interface: ISO 4401-05 / NFPA D05 / NG10 (subplate / manifold mount) Actuation: Solenoid, electrical connection via ISO 4400 (DIN 43650) connector Coil Voltage: 24 V DC Maximum Flow Rate: 120 L/min (≈ 32 GPM) Maximum Operating Pressure (P, A, B ports): 315–350 bar (approx. 4500 psi) Tank Port Pressure Rating (T port): typically 210 bar (≈ 3000 psi) Seal Material: Viton (or standard hydro-oil compatible seals) Fluid Compatibility: Petroleum-based hydraulic oils Ambient / Operating Temperature Range: –20 °C to +70 °C (–4 °F to +158 °F) Spool Type / Center Condition: Spool “2AJ 22” — closed/tandem-center (spring offset or spring-center depending config) Manual Override: Plain (standard) Construction / Body Material: Gray iron cast body, subplate-mountable Fluid Cleanliness Requirement: ISO 19/17/14 (micron code) Electrical Connector: ISO 4400 (DIN 43650) solenoid coil connector Valve Mount Type: Subplate / manifold mounted (ISO / CETOP D05) Performance Level: High-performance industrial directional control valve

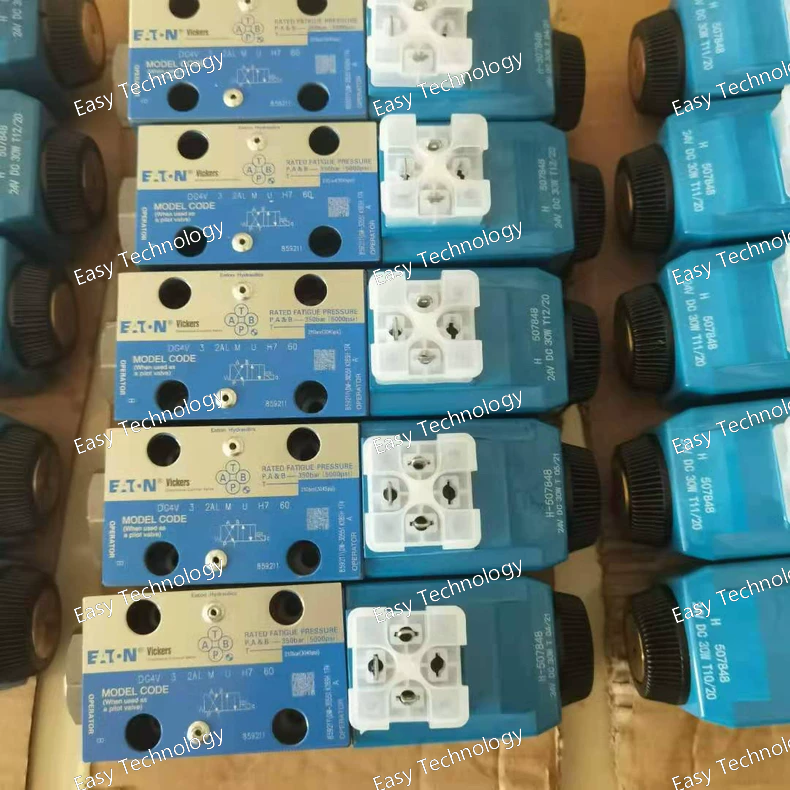

Technical Specifications Brand / Series: Vickers by Eaton, DG4V-3 series (60 Series design) Model Code: DG4V-3-2AL-M-U-H7-60 Actuation Type: Solenoid operated Coil Voltage: 24 V DC Mounting / Interface: Subplate / manifold mount, ISO 4401-03 (D03) interface Valve Type: Directional control valve (3- or 4-way) Flow Rate (max): up to 21.0 GPM (≈ 80.0 L/min) Max Operating Pressure (P, A, B ports): 350 bar (≈ 5000 psi) Max Tank Port Pressure (T port): 210 bar (≈ 3000 psi) Seal Material (standard): Viton (for multi-fluid compatibility) — nitrile (Buna-N) may be an option depending on variant. Electrical Connection: ISO 4400 (DIN 43650) solenoid connector Power Consumption (coil): approx. 30 W Spool Type / Spring Arrangement: Spool “2AL” / Spool 2, Spring-offset (end-to-end) center arrangement Manual Override: Plain (standard) Fluid Compatibility: Petroleum-based hydraulic oils Fluid Cleanliness Recommended: 19/17/14 micron code Operating Temperature Range: –20 °C to +70 °C (–4 °F to +158 °F) Body Material: Gray cast iron Valve Size: D03 (ISO 4401)

Technical Specifications Parameter / Spec Value / Description Brand / Series Vickers by Danfoss — DG4V-3, 60 Series Model Code DG4V32NMUH760 Valve Type Directional control valve, solenoid-operated Actuation Type Solenoid operated (double-solenoid) Coil Voltage 24 V DC Electrical Connection ISO 4400 (DIN 43650) solenoid connector Mounting / Interface Subplate / manifold mount, ISO 4401-03 (D03) Maximum Flow Rate 21.0 GPM (≈ 80.0 L/min) Maximum Operating Pressure (P, A, B ports) 350 bar (≈ 5000 psi) Tank (T) Port Pressure Rating 210 bar (≈ 3000 psi) Seal Material (standard) Viton Fluid Compatibility Petroleum-based hydraulic oils Fluid Cleanliness Requirement 19/17/14 (µm code) Power Consumption (coil) 30 W Stage / Spool Single stage; Spool type “Spool 2” (closed/tandem-center or equivalent per code) Spring / Center Arrangement No spring detent (i.e. double solenoid, springless center) Operating Temperature Range –20 °C to +70 °C (–4 °F to +158 °F) Valve Mount Type Subplate / manifold mounted Size (ISO) D03 (ISO 4401-03) Valve Functionality 3- or 4-way directional control valve, suitable for typical industrial hydraulic circuits

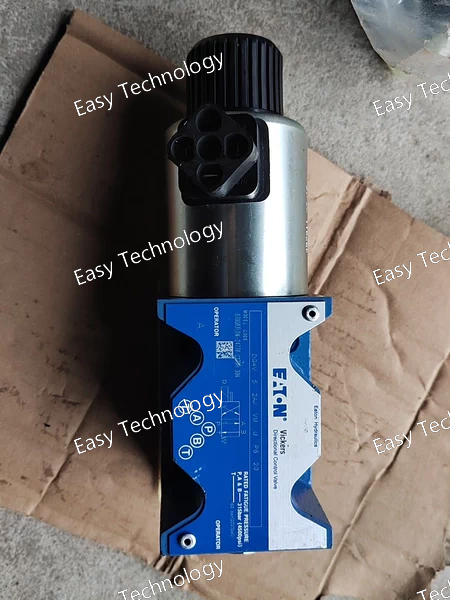

Technical Specifications Brand / Series: Vickers by Eaton — DG4V-5 series (20-series design) Model Code: DG4V-5-2AJ-VMU620 Valve Type: Solenoid-operated directional control valve (4-way / 3-way, depending on port/spool configuration) Mounting / Interface: Subplate / manifold mount, ISO 4401-05 (NFPA D05 / NG10) Actuation: Solenoid operated (dual/ single depending on coil config) Electrical Connection: ISO 4400 (DIN 43650) connector Flow Capacity: up to 32 US gpm (≈ 120 L/min) — depending on spool and system conditions Maximum Operating Pressure (Ports P, A, B): 315 bar (≈ 4500 psi) Tank Port Pressure Rating (T port): typically up to 160–210 bar (depending on coil type / spec) Seal Material (standard): Viton (O-rings / seals compatible with petroleum hydraulic oils) Fluid Compatibility: Petroleum-based hydraulic oils Spool Type: 2AJ (closed-center / all ports blocked in neutral, per spool code) Spool Spring Arrangement: Spring-offset (end-to-end) — spring offsets spool toward one end when solenoids are de-energized Manual Override: Plain (standard override in solenoid end only, if equipped) Valve Mount Type: Subplate / manifold mounted (D05 / NG10) Fluid Cleanliness Requirement: 19/17/14 micron code (recommended filtration) Working (Ambient) Temperature Range: from –20 °C (–4 °F) up to about +40 °C (104 °F) for certain coils (for AC coils; DC-coil variants may permit higher ambient) Valve Body Material: Cast gray-iron (robust industrial construction)

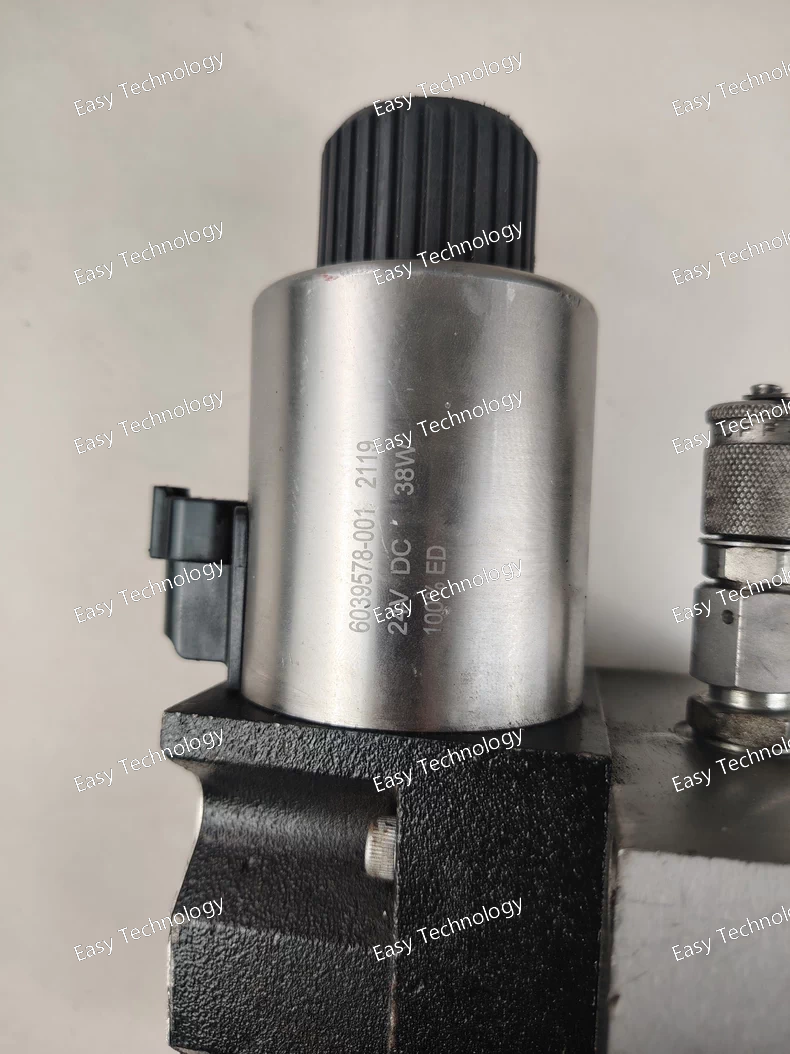

Technical Specifications Parameter / Spec Value / Description Brand / Series Vickers by Eaton — DG4V-5M, 22 Series Model Code DG4V-5M-2AJ-M-KUP5-H7-22-EN194 Valve Type Directional control valve, solenoid-operated Actuation Type Solenoid operated Coil / Electrical Connection Integrated Deutsch connector (“KUP5”) Coil Rating / Voltage 24 V DC Flow Capacity up to 32 US gpm (≈ 120 L/min) Maximum Operating Pressure (Ports P, A, B) 315 bar (≈ 4500 psi) Tank Port Pressure Rating (Port T) 210 bar (≈ 3000 psi) Seal Material (standard) Viton Fluid Compatibility Petroleum-based hydraulic oils Fluid Cleanliness Requirement 19/17/14 micron code Spool Type Spool 22 (2AJ) Spool Spring / Center Arrangement Spring-offset, end-to-end (spring returns spool toward one end when de-energized) Stage Single-stage directional valve Mounting / Interface Subplate / manifold mount, ISO 4401-05 (NG10 / D05) standard Manual Override Plain manual override (standard) Performance Level High-performance industrial directional valve Operating Ambient Temperature Range –20 °C to +70 °C (–4 °F to +158 °F) Power Consumption (coil) 38 W (when energized) Electrical Response / Energising Time ~ 120–45 ms (typical)

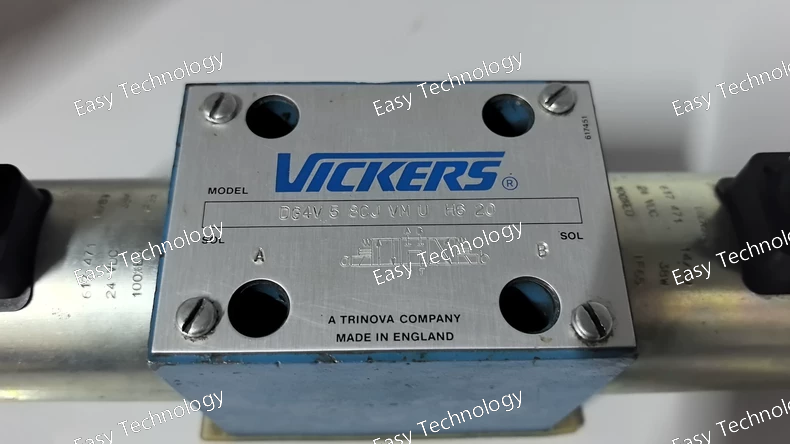

Technical Specifications Brand / Series: Vickers by Eaton — DG4V‑5, 20 Series Model Code: DG4V‑5-8CJ-VM-U-H6-20 Valve Type: Solenoid-operated directional control valve (4-way / 3-way depending on spool) Mounting / Interface: Subplate / manifold mount — ISO 4401‑05 (D05 / NG10) Actuation: Solenoid operated (wet-armature) Electrical Connection: ISO 4400 (DIN 43650) connector Coil Rating / Type: 24 V DC Maximum Flow Rate: Up to 32 US gpm (≈ 120 L/min) Maximum Operating Pressure (P, A, B ports): 315 bar (≈ 4500 psi) Tank (T) Port Pressure Rating: 160 bar (≈ 2320 psi) Seal Material (standard): Viton Fluid Compatibility: Petroleum-based hydraulic oils Fluid Cleanliness Requirement: 19/17/14 micron code Spool Type / Center Condition: Spool “8CJ”, spring-centered spool with four-land design Stage: Single-stage directional valve Manual Override: Plain (manual override at solenoid ends) Valve Mount Type: Subplate / manifold mounted (ISO / NFPA standard) Ambient / Operating Temperature Range: –20 °C to +70 °C (–4 °F to +158 °F)

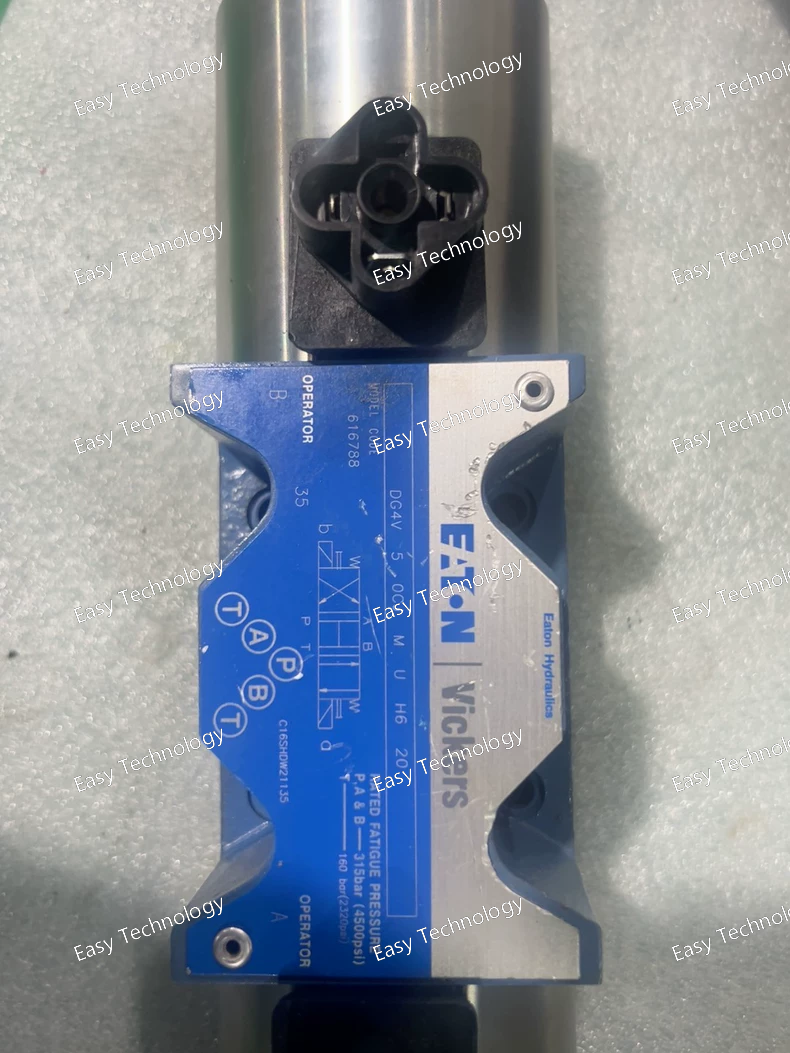

Technical Specifications Brand / Series: Vickers by Eaton — DG4V‑5, 20 Series Model Code: DG4V‑5-0CJ-VM-U-H6-20 Valve Type: Solenoid-operated directional control valve (4-way / 3-way depending on port/spool configuration) Mounting / Interface: Subplate / manifold mount — ISO 4401‑05 (D05 / NG10) Actuation: Solenoid operated Electrical Connection: ISO 4400 (DIN 43650) connector Coil Rating / Type: 24 V DC Maximum Flow Rate: Up to 32 US gpm (≈ 120 L/min) Maximum Operating Pressure (P, A, B ports): 315 bar (≈ 4500 psi) Tank (T) Port Pressure Rating: 160 bar (≈ 2320 psi) Seal Material (standard): Viton Fluid Compatibility: Petroleum-based hydraulic oils Fluid Cleanliness Requirement: 19/17/14 micron code Spool Type / Center Condition: Spool “0CJ”, spring-centered Stage: Single-stage directional valve Manual Override: Plain (manual override at solenoid ends) Valve Mount Type: Subplate / manifold mounted (ISO / NFPA standard) Operating Temperature Range: –20 °C to +70 °C (–4 °F to +158 °F)

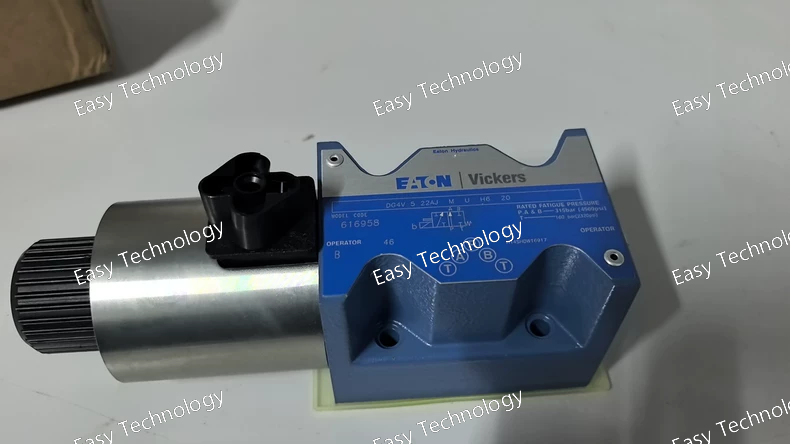

Technical Specifications Brand / Series: Vickers by Eaton — DG4V‑5 series Model Code: DG4V‑5-22AJ-MUH620 Valve Type: Solenoid-operated directional control valve (4-way / 3-way depending on spool/port configuration) Mounting / Interface: Subplate / manifold mount — ISO 4401‑05 (D05 / NG10) Actuation: Solenoid operated Electrical Connection: ISO 4400 (DIN 43650) connector Coil Voltage: 24 V DC Maximum Flow Rate: Up to 32 US gpm (≈ 120 L/min) Maximum Operating Pressure (P, A, B ports): 315 bar (≈ 4500 psi) Tank Port Pressure (T port): 160–210 bar (≈ 2320–3050 psi) Seal Material (standard): Viton Fluid Compatibility: Petroleum-based hydraulic oils Fluid Cleanliness Requirement: 19/17/14 micron code Spool Type / Center Condition: Spool “22AJ”, spring-offset or spring-centered (depending on configuration) Stage: Single-stage directional valve Manual Override: Plain (manual override at solenoid ends) Operating Temperature Range: –20 °C to +70 °C (–4 °F to +158 °F) Valve Body Material: Cast gray iron

Technical Specifications Brand / Series: Vickers by Eaton — DG4V‑5 series Model Code: DG4V‑5-22NJ-M-U-H6 Valve Type: Solenoid-operated directional control valve (4-way / 3-way depending on spool/port configuration) Mounting / Interface: Subplate / manifold mount — ISO 4401‑05 (D05 / NG10) Actuation: Solenoid operated Electrical Connection: ISO 4400 (DIN 43650) connector Coil Voltage: 24 V DC Maximum Flow Rate: Up to 32 US gpm (≈ 120 L/min) Maximum Operating Pressure (P, A, B ports): 315 bar (≈ 4500 psi) Tank Port Pressure (T port): 160–210 bar (≈ 2320–3050 psi) Seal Material (standard): Viton Fluid Compatibility: Petroleum-based hydraulic oils Fluid Cleanliness Requirement: 19/17/14 micron code Spool Type / Center Condition: Spool “22NJ”, spring-centered or spring-offset depending on configuration Stage: Single-stage directional valve Manual Override: Plain (manual override at solenoid ends) Operating Temperature Range: –20 °C to +70 °C (–4 °F to +158 °F) Valve Body Material: Cast gray iron
