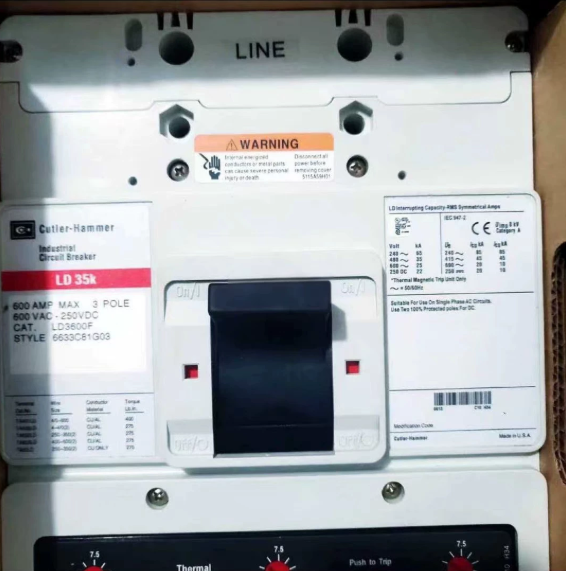

The LD3600F is part of the Eaton / Cutler-Hammer Series C LD35K molded case circuit breaker family. “LD35K” refers to the 35kA interrupting capacity class at 480VAC, while LD3600F is the specific 600A frame model.
home
The LD3600F is part of the Eaton / Cutler-Hammer Series C LD35K molded case circuit breaker family. “LD35K” refers to the 35kA interrupting capacity class at 480VAC, while LD3600F is the specific 600A frame model.
WhatsApp
| Item | Specification |
|---|---|
| Manufacturer | Eaton / Cutler-Hammer |
| Catalog Number | LD3600F |
| Series | Series C |
| Breaker Type | Molded Case Circuit Breaker |
| Frame Type | L-Frame (LD) |
| Interrupt Class | LD35K |
| Rated Current | 600 A |
| Number of Poles | 3 Pole |
| Rated Voltage | 600 VAC |
| DC Voltage Rating | 250 VDC |
| Frequency | 50/60 Hz |
| Trip Unit Type | Fixed Thermal / Fixed Magnetic (T186) |
| Protection Functions | Long-Time and Instantaneous Protection |
| Interrupting Capacity | 65 kAIC @ 240 VAC |
| Interrupting Capacity | 35 kAIC @ 480 VAC |
| Interrupting Capacity | 25 kAIC @ 600 VAC |
| Interrupting Capacity | 22 kAIC @ 250 VDC |
| Mounting Type | Bolt-On |
| Terminal Type | Line and Load |
| Certification | UL 489 |
| Weight | Approx. 17 lb (7.7 kg) |
| Dimensions | 10.75 × 8.25 × 4.06 in |
| Operating Temperature Reference | 40°C Calibration |
| Application | Industrial Power Distribution, MCC, Switchgear, OEM Equipment, Motor Protection Systems |
The Eaton Cutler-Hammer LD3600F is a heavy-duty Series C L-Frame molded case circuit breaker designed for industrial power distribution and motor control applications. Featuring a 600A current rating, 600VAC operating voltage, and 35kA interrupting capacity at 480VAC, the breaker provides dependable protection against overloads and short circuits in demanding electrical systems. The LD3600F utilizes a fixed thermal-magnetic trip mechanism and is commonly installed in switchboards, motor control centers (MCCs), industrial panels, mining facilities, and manufacturing plants.
High-performance Series C molded case breaker
600A continuous current rating
Thermal-magnetic trip protection
35kA interrupting rating at 480VAC
Suitable for 600VAC and 250VDC systems
Rugged industrial-grade construction
UL 489 certified
Compatible with Eaton Series C accessories and trip units
