The ABB 2CDS212001R0401 is a 40A, 2-pole, C-curve Miniature Circuit Breaker (MCB) from the ABB S200 Series (System PRO M). This device is designed to provide reliable overload and short-circuit protection for two-wire single-phase or split-phase circuits with moderate inrush currents. The "C" tripping characteristic offers a balanced response, making it suitable for protecting a wide range of general-purpose circuits and equipment in commercial, industrial, and large residential applications. As a 2-pole breaker, it simultaneously interrupts both the live (phase) and neutral conductors, ensuring complete circuit isolation.

Technical Parameters Category Parameter Specification / Description General Model 3582i Type Pneumatic Force-Balance Positioner (Indicating) Input & Output Input Signal 3 to 15 psi (0.2 to 1.0 bar) Supply Pressure Up to 100 psig (6.9 bar) Output Action Can be configured for Single-Acting (for spring-return actuators) or Double-Acting (for piston actuators). Performance Linearity ±1% of span Hysteresis Less than 0.5% of span Air Consumption Steady State: ~0.15 SCFM (4.2 NLPM) During Stroking: ~2.0 SCFM (56.6 NLPM) Environmental Ambient Temperature -40°F to 180°F (-40°C to 82°C) Enclosure Rating Type 4X, 7, 9 (NEMA 4X, 7, 9); Weatherproof, dust-tight, and certified for hazardous locations. Hazardous Area Certifications FM/CSA: Explosion-proof (Class I, Div. 1, Groups B, C, D; Class II, Div. 1, Groups E, F, G). Physical Housing Material Aluminum with corrosion-resistant coating. Pneumatic Connections Supply & Outputs: 1/4" NPT Weight Approximately 11 lbs (5 kg) Indicator Local mechanical gauge showing valve travel vs. signal.

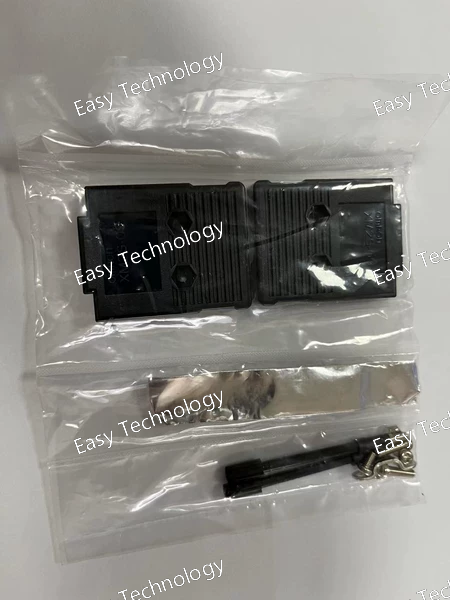

The OMRON XM2S-0911-E is a D-Sub backshell (connector hood) from the XM2S Series, specifically designed with ESD (Electrostatic Discharge) protection . Unlike standard metal-shell hoods, this model features a black ABS resin cover with no conductive parts on the external surface, which helps prevent static electricity generation .
