The SICK DL100-21HA2103 is a compact laser distance sensor, designed for short-range, high-accuracy measurements. It emits a visible red laser beam and provides both analog and switch outputs, enabling flexible integration into automated systems for precise distance monitoring and control. The robust metal housing and high ambient light immunity ensure reliable performance in harsh industrial environments.

The Schneider XBTGT6340 advanced touchscreen panel is engineered for precision control and efficiency in industrial automation. Ideal for applications requiring high-performance displays and user-friendly interfaces.

Core Specifications

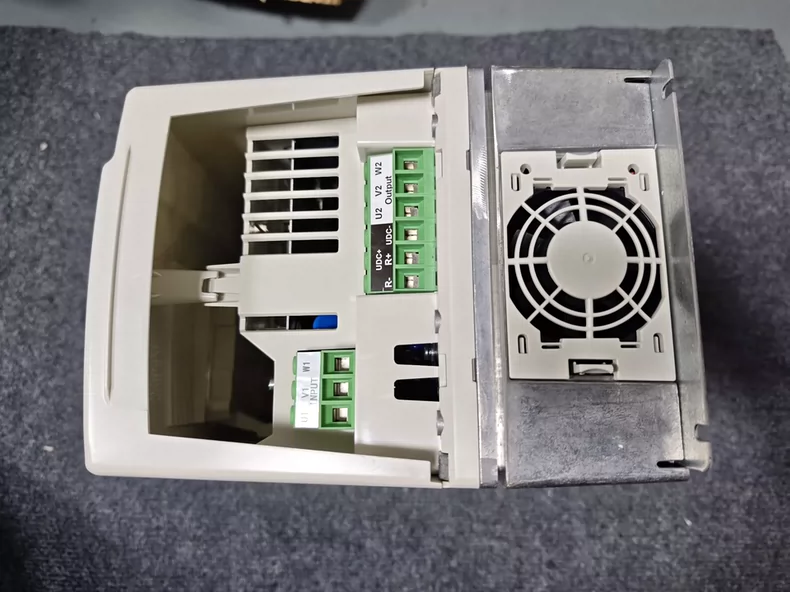

Drive Unit (ACS800-01-0003-3):

Output Power: 2.2kW (3HP) at 400V

Output Current: 5.5A continuous

Input Voltage: 3-phase 380-480V AC (±10%)

Overload Capacity: 150% for 60 seconds

Control Technology: Direct Torque Control (DTC)

Efficiency: >96% at full load

Switching Frequency: 1-16kHz (adjustable)

P901 Control Panel:

7" high-resolution color touchscreen

Multi-language interface (12 languages)

Integrated web server functionality

8GB data logging capacity

USB 3.0 configuration port

Real-time clock with battery backup

Key System Features
Advanced Control:
✔ Precision Regulation: ±0.2% speed accuracy
✔ Application Macros: 6 pre-programmed configurations
✔ Process Control: Single PID controller with auto-tuning
✔ Energy Optimization: Power consumption monitoring

Connectivity:

Standard Interfaces:

Modbus RTU (RS485)

Ethernet

Optional Modules:

PROFIBUS DP

PROFINET IRT

DeviceNet

Safety Systems:

Safe Torque Off (STO) - SIL3 certified

Motor thermal protection

Short-circuit protection

Phase loss detection

Mechanical Specifications
Enclosure Rating: IP21 (NEMA 1)

Dimensions: 200 × 400 × 180mm (W×H×D)

Weight: 8.5kg (complete system)

Cooling: Natural convection

Noise Level: <55dB at 1m
