Core Specifications

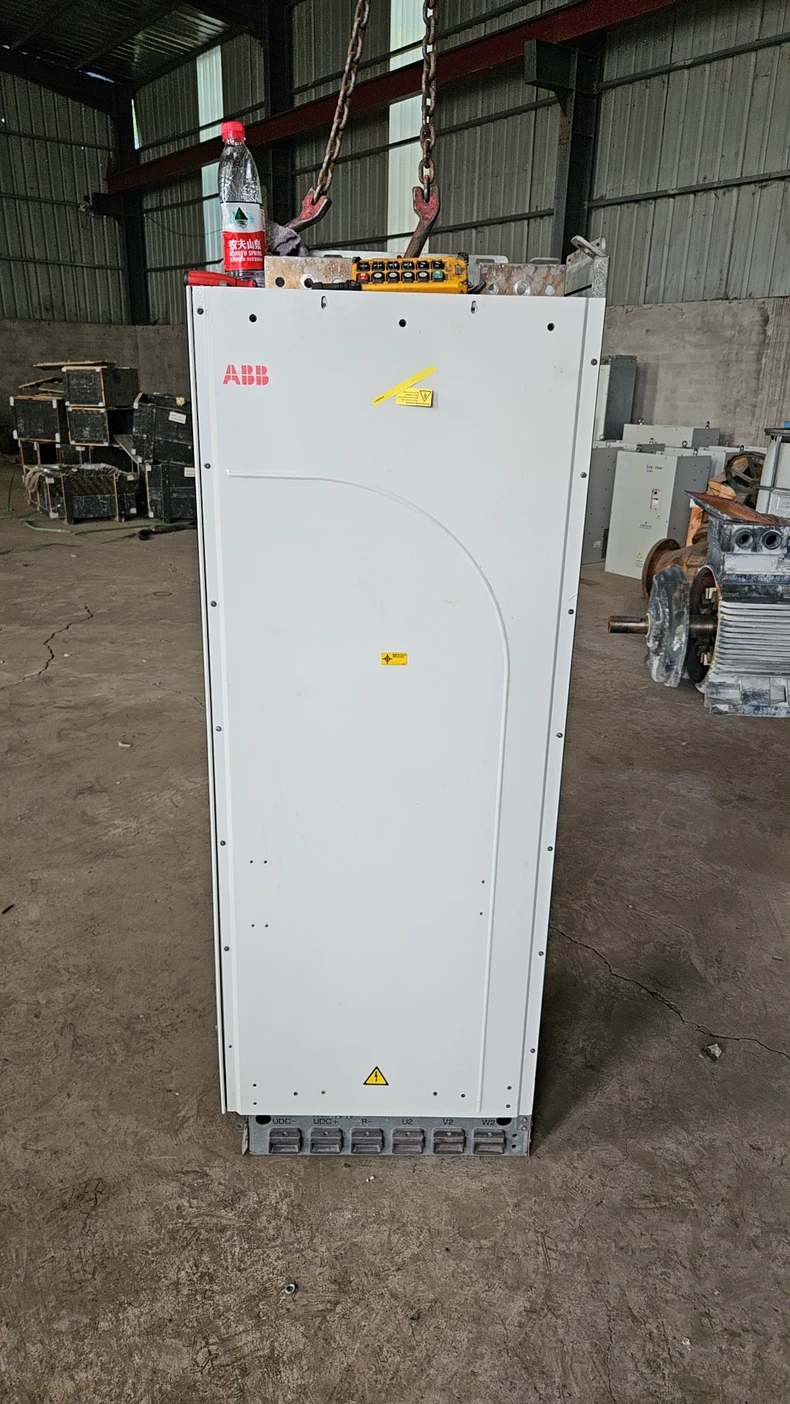

Drive Unit (ACS800-04P-0320-3):

Output Power: 320kW (400V)

Output Current: 620A continuous

Input Voltage: 3-phase 380-415V AC (±10%)

Overload Capacity:

150% for 60 seconds

200% for 3 seconds

Control Technology: Direct Torque Control (DTC)

Efficiency: 98.2% at full load

Switching Frequency: 1-3kHz (adjustable)

P901 Control Panel:

7" high-brightness TFT touchscreen

Multi-language HMI (16 languages)

Integrated web server (HTTP/HTTPS)

16GB data logging capacity

USB 3.0 configuration port

Real-time clock with battery backup

Key System Features
Advanced Performance:
✔ Ultra-Precise Control: ±0.05% speed accuracy
✔ Adaptive Control: 12 application-specific macros
✔ Process Optimization: Dual PID controllers with fuzzy logic
✔ Harmonic Mitigation: <3% THID with active front end option

Connectivity:

Standard interfaces:

PROFINET IRT (2 ports)

EtherNet/IP

OPC UA over TCP/IP

Optional modules:

PROFIBUS DP-V2

BACnet MS/TP

Modbus TCP

Safety Systems:

SIL3 certified safety functions:

Safe Torque Off (STO)

Safe Stop 1 (SS1)

Safe Speed Monitor (SSM)

Redundant safety circuits

Automatic self-test routines

Mechanical Specifications
Enclosure: IP21 (NEMA 1)

Cooling System: Smart cooling with dual fans

Dimensions: 550 × 900 × 400mm (W×H×D)

Weight: 98kg (complete system)

Noise Level: <65dB at 1m
